Asc Engineered Solutions 362025801 Socket Weld Tee 1-1/4 in 3000 Lb

Product Description

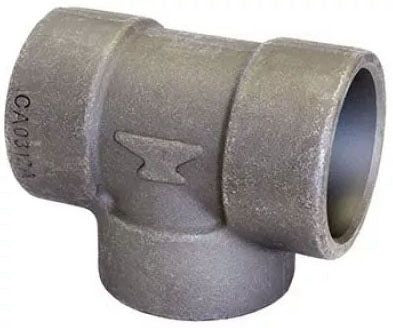

The ASC ENGINEERED SOLUTIONS 362025801 is a forged steel socket weld tee rated for 3000 lb pressure class service. It accepts 1-1/4 inch pipe on all three outlets via socket weld connections, providing a full-flow branch fitting for high-pressure piping systems. The forged steel construction delivers the wall thickness and grain integrity required in demanding industrial and mechanical applications. Plumbers, pipefitters, and industrial pipe installers specify this fitting where threaded or butt-weld connections are not appropriate and where pressure ratings above standard 150 lb fittings are required.

This tee is suited for high-pressure steam, hydronic, oil, or gas piping systems where socket weld fittings are specified. It is commonly installed in commercial mechanical rooms, industrial process piping, and plant utility systems that require ASME B16.11 class 3000 lb forged fittings. Its 1-1/4 inch size fits standard schedule pipe in the same nominal diameter.

Key Features

• Forged steel construction for high-integrity pressure service
• 3000 lb pressure class rating for demanding system requirements
• Socket weld end connections on all three outlets
• 1-1/4 inch nominal fitting size fits standard pipe
• Full tee configuration allows equal branch takeoff

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch socket weld piping systems rated at 3000 lb pressure class.

Installation Notes

Socket weld fittings are installed by certified pipe welders or licensed pipefitters in accordance with applicable codes including ASME B31.1 or B31.3 depending on the service. Depressurize and isolate the piping system completely before cutting in or replacing any fitting. Pipe ends must be cut square, deburred, and properly gapped per welding procedure specifications before socket insertion and tack welding. Do not apply pressure to the system until all welds have been completed, inspected, and cooled.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1-1/4 inches
• Pressure Class: 3000 lb
• Connection Type: Socket Weld
• Item Weight: 2.04 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362025801
