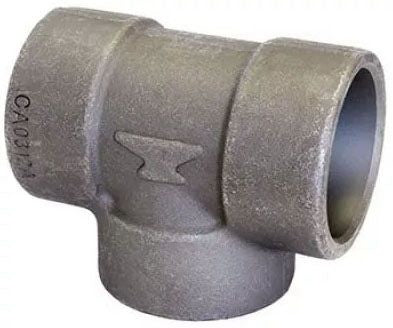

Asc Engineered Solutions 362025405 Socketweld Tee 3/4in 3000lb

Product Description

The ASC Engineered Solutions 362025405 is a forged steel socketweld tee designed for high-pressure piping systems in industrial and commercial applications. Rated at 3000 lb pressure class and sized at 3/4 inch, this fitting provides a strong, leak-resistant branch connection when socket-welded into place. The forged steel construction delivers the structural integrity required for demanding process, mechanical, and utility piping installations. Licensed pipefitters and welders are the primary trade installing this type of fitting on high-pressure systems.

This socketweld tee is suited for use in high-pressure steam, hydraulic, gas, and process fluid piping systems where a reliable branch takeoff is required. The 3/4 inch size fits standard Schedule 80 and Schedule 160 pipe in applications where 3000 lb class fittings are specified. It is commonly installed in industrial plants, commercial mechanical rooms, and process facilities where high-integrity socket-weld connections are required by code or engineering specification.

Key Features

• Forged steel construction for high strength and pressure integrity
• 3000 lb pressure class rating suitable for demanding high-pressure systems
• 3/4 inch socketweld end connections for secure, weld-in installation
• Tee configuration provides a 90-degree branch outlet from the run
• Compact, equal-tee geometry fits standard pipe layouts

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch high-pressure forged steel socketweld piping systems rated at 3000 lb pressure class.

Installation Notes

Installation should be performed by a qualified, licensed pipefitter or welder in accordance with applicable codes such as ASME B16.11 and the applicable piping system design specification. De-energize, depressurize, and fully isolate the piping system before cutting in or replacing any fitting. Socket-weld fittings require proper gap spacing between pipe end and socket shoulder before welding to prevent stress cracking. Do not use this fitting in applications exceeding its rated pressure class.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 3/4 inches
• Pressure Class: 3000 lb
• Connection Type: Socketweld
• Item Weight: 0.83 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362025405
