Asc Engineered Solutions 362025207 Socket Weld Tee 1/2 in

Product Description

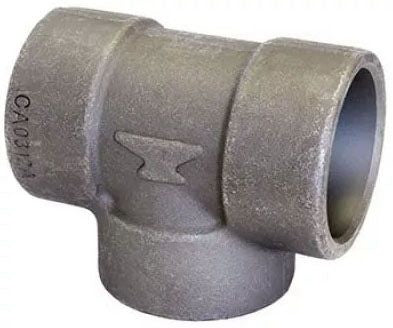

The ASC ENGINEERED SOLUTIONS 362025207 is a forged steel socket weld tee rated for 3000 lb pressure class service. This fitting is designed for high-pressure piping systems where a branch connection is required in-line with the main run. The socket weld end connections allow pipe to be inserted into the fitting before welding, providing a strong, leak-resistant joint suitable for demanding process and utility piping applications. Licensed pipefitters and welders install this type of fitting in industrial, commercial, and mechanical systems where threaded connections are not acceptable under applicable codes.

This tee is sized at 1/2 inch and is well suited for high-pressure steam, hydraulic, gas, and process fluid lines in industrial plants, refineries, shipbuilding, and commercial mechanical rooms. The 3000 lb pressure class designation makes it appropriate for systems operating at elevated pressures where standard fittings are not rated to perform. It is a standard choice when piping layout requires equal-leg tee branch connections at this pressure rating.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 3000 lb pressure class rating for demanding system applications
• Socket weld end connections for a secure, full-penetration weld joint
• 1/2 inch fitting size for smaller-diameter high-pressure lines
• Tee configuration provides equal in-line and branch connections

Compatibility

Designed as an OEM-style forged steel socket weld fitting for use in 1/2 inch high-pressure piping systems rated at 3000 lb pressure class.

Installation Notes

Installation should be performed by a qualified pipefitter or certified welder in accordance with ASME B31.1, B31.3, or the applicable piping code for the system. Isolate and depressurize the line completely before fitting installation. Socket weld fittings require a small gap between pipe end and socket bottom prior to welding to allow for thermal expansion during the weld process. Do not use this fitting for threaded connections.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1/2 inch
• Pressure Class: 3000 lb
• Connection Type: Socket Weld
• Item Weight: 0.68 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362025207
