Asc Engineered Solutions 362013807 Sw 45 Elbow 1-1/2 in 3000 Lb

Product Description

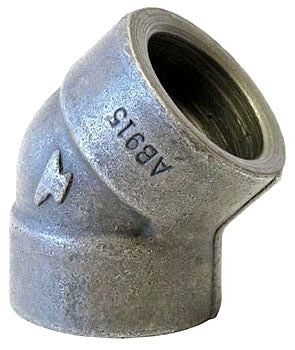

The ASC ENGINEERED SOLUTIONS 362013807 is a forged steel socket weld 45-degree elbow rated for 3000 lb pressure class service. Designed for high-pressure piping systems, this fitting redirects flow at a 45-degree angle using a socket weld end connection, which provides a strong, leak-resistant joint when properly welded. The 1-1/2 inch fitting size suits a wide range of industrial and mechanical piping applications. At 1.67 pounds, the forged steel construction delivers the wall thickness and mechanical strength required for demanding service conditions. Certified welders and pipefitters install these fittings in accordance with applicable piping codes.

This 45-degree socket weld elbow is used in high-pressure steam, oil, gas, and hydraulic piping systems where a moderate change in flow direction is required. The socket weld configuration is common in smaller-diameter, high-pressure lines where threaded fittings are insufficient and butt weld access is limited. Typical installation environments include industrial process piping, mechanical rooms, and power generation facilities. The 3000 lb pressure class designation makes it appropriate for ASME B16.11-compliant high-pressure piping assemblies.

Key Features

• Forged steel construction for high mechanical strength and pressure integrity
• 3000 lb pressure class rating for demanding high-pressure service
• 45-degree elbow geometry for moderate directional change in piping runs
• Socket weld end connection for strong, full-penetration welded joints
• 1-1/2 inch fitting size suits common industrial pipe diameters

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch socket weld piping systems operating at 3000 lb pressure class per ASME B16.11 standards.

Installation Notes

Installation must be performed by a qualified pipefitter or certified welder following applicable codes such as ASME B31.1 or B31.3. Depressurize and isolate the piping system fully before cutting or fitting any components. Socket weld fittings require a small gap between the pipe end and the socket bottom prior to welding to allow for thermal expansion. Do not substitute socket weld fittings for butt weld or threaded applications without verifying system pressure and code requirements.

Technical Specifications

• Fitting Size: 1-1/2 inches
• Elbow Degree: 45 degrees
• Pressure Class: 3000 lb
• Connection Type: Socket Weld
• Fitting Material: Forged Steel
• Item Weight: 1.67 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362013807
