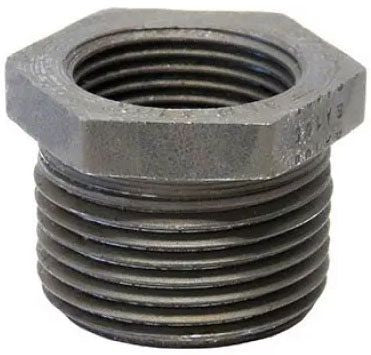

Asc Engineered Solutions 361333206 Threaded Hex Bushing 2x3/4 in

Product Description

The ASC Engineered Solutions 361333206 is a forged steel threaded hex bushing rated for 3000 lb service, designed to reduce a 2-inch female threaded connection down to a 3/4-inch male threaded outlet. The hex profile allows standard wrench engagement for secure, torque-controlled installation. Built from forged steel, this bushing delivers the mechanical strength and pressure resistance required in demanding piping systems. It is a standard component in high-pressure piping assemblies and is installed by licensed plumbers, pipefitters, and mechanical contractors working in industrial and commercial applications.

This threaded hex bushing is suited for use in high-pressure piping systems where a threaded reduction between a 2-inch and 3/4-inch connection is required. Common applications include steam, hydraulic, and compressed-air distribution lines, as well as industrial process piping that requires 3000 lb class fittings. The forged steel construction makes it appropriate for environments where cast iron or malleable iron fittings would not meet pressure or mechanical load requirements.

Key Features

• Forged steel construction provides high mechanical strength and pressure integrity
• 3000 lb pressure class rating for demanding service conditions
• Reduces 2-inch female thread to 3/4-inch male thread in a single fitting
• Hex profile allows wrench engagement for positive make-up torque
• Threaded connection type for tool-accessible installation and removal

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3000 lb class threaded steel piping systems requiring a 2-inch by 3/4-inch reduction.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and piping codes. Depressurize and isolate the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before make-up. Do not use pipe wrenches directly on the hex flats in a way that could damage the seating surfaces; use a properly sized open-end or adjustable wrench.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 2 inches x 3/4 inches
• Pressure Rating: 3000 lb
• Type: Threaded Hex Bushing
• Item Weight: 1.38 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361333206
