Asc Engineered Solutions 361331903 Threaded Hex Bushing

Product Description

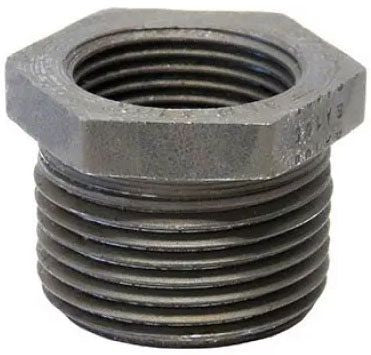

The ASC Engineered Solutions 361331903 is a forged steel threaded hex bushing designed to reduce pipe connections from a 1-1/4 inch female thread to a 3/4 inch male thread. Rated for 3000 PSI service, this fitting is built for demanding applications where pressure integrity matters. The hex body allows for standard wrench engagement during installation, providing a secure, leak-resistant connection. Plumbers, pipefitters, and mechanical contractors use this type of bushing when transitioning between pipe sizes in threaded piping systems. It weighs 0.45 pounds and is manufactured from forged steel for durability in industrial and commercial environments.

This hex bushing is suited for use in high-pressure threaded piping systems found in industrial plants, commercial mechanical rooms, and process piping applications. It is appropriate for systems carrying steam, water, oil, or gas where a 3000 PSI-class fitting is specified. The forged steel construction meets the demands of environments where cast fittings would not be adequate. Installers typically use this fitting when reducing line size within an existing threaded pipe run without disrupting the overall system layout.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 3000 PSI pressure class rating
• Reduces from 1-1/4 inch female thread to 3/4 inch male thread
• Hex body allows secure wrench engagement during makeup
• Threaded connection type for straightforward field installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3000 PSI-class threaded forged steel piping systems requiring a 1-1/4 inch to 3/4 inch reducing connection.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes. Shut down system pressure and drain the line before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before makeup. Do not over-torque the fitting, as this can damage threads or compromise the seal.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1-1/4 inches x 3/4 inches
• Type: Threaded Hex Bushing
• Pressure Class: 3000 PSI
• Item Weight: 0.45 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361331903
