Asc Engineered Solutions 361331002 Threaded Hex Bushing

Product Description

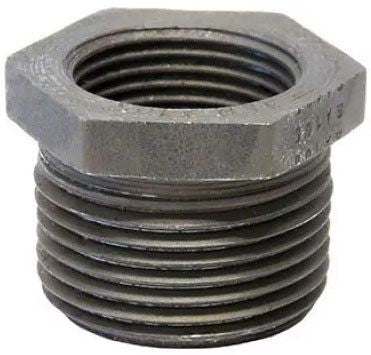

The ASC ENGINEERED SOLUTIONS 361331002 is a forged steel threaded hex bushing rated for 3000 lb service. It reduces a 1-inch female thread to a 1/8-inch male thread, making it a standard fitting used to transition between pipe sizes in high-pressure piping systems. At 0.39 pounds, it is a compact, heavy-duty fitting suited for use by licensed plumbers and pipefitters working on industrial, commercial, or mechanical systems where pressure integrity is critical.

This bushing is designed for threaded piping installations that require a reduction from 1-inch to 1/8-inch connections. It is commonly installed in compressed air, hydraulic, steam, oil, or gas piping systems where 3000 lb class fittings are specified. The hex body allows for wrench engagement during installation, which is standard practice in tight or high-torque applications found in mechanical rooms, process piping, and industrial equipment hookups.

Key Features

• Forged steel construction provides strength and durability in demanding piping environments
• 3000 lb pressure rating suitable for high-pressure threaded pipe systems
• Reduces 1-inch female thread to 1/8-inch male thread for pipe size transitions
• Hex body design allows standard wrench engagement for secure installation
• Compact form factor at 0.39 pounds for easy handling and installation

Compatibility

Designed as an OEM-style replacement or standard-service fitting for 3000 lb class threaded forged steel piping systems requiring a 1-inch by 1/8-inch bushing reduction.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Isolate and depressurize the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly and tighten to the system requirements using a pipe wrench on the hex body. Follow applicable code requirements including ASME B31 piping standards and local mechanical codes.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1 inch x 1/8 inch
• Pressure Rating: 3000 lb
• Type: Threaded Hex Bushing
• Item Weight: 0.39 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361331002
