Asc Engineered Solutions 361330806 Threaded Hex Bushing 3/4x3/8

Product Description

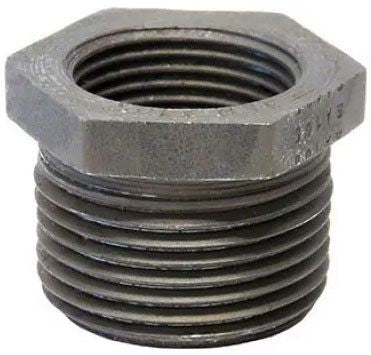

The ASC ENGINEERED SOLUTIONS 361330806 is a forged steel threaded hex bushing rated for 3000 lb service. It reduces a 3/4-inch female thread to a 3/8-inch male thread, making it a standard Class 3000 fitting for high-pressure piping systems. The hex profile allows wrench engagement for proper torque during installation. Weighing 0.13 pounds, this compact bushing is sized for use in industrial, commercial, and mechanical piping assemblies. Licensed plumbers and pipefitters are the typical installers in both new construction and retrofit applications.

This bushing is designed for use in high-pressure threaded pipe systems where a reduction from 3/4-inch to 3/8-inch is required. Class 3000 fittings are commonly found in steam, water, oil, and gas service lines in commercial mechanical rooms, industrial process piping, and heavy-duty HVAC hydronic systems. The forged steel construction makes it suitable for demanding service environments where cast or malleable fittings are not adequate.

Key Features

• Forged steel construction for high-pressure and high-stress service
• 3000 lb pressure rating suitable for Class 3000 threaded piping systems
• Reduces 3/4-inch female thread to 3/8-inch male thread
• Hex profile allows standard wrench engagement for secure installation
• Lightweight at 0.13 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-install fitting for Class 3000 threaded steel pipe systems using 3/4-inch to 3/8-inch reductions.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber following applicable codes such as ASME B16.11 and local mechanical codes. Shut off and depressurize the pipe system completely before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to the male threads before assembly. Do not over-torque, as this can crack fittings or damage threads.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 3/4 inches x 3/8 inches
• Pressure Rating: 3000 lb
• Type: Threaded Hex Bushing
• Item Weight: 0.13 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361330806
