Asc Engineered Solutions 361168008 3/4 in Threaded Half Coupling

Product Description

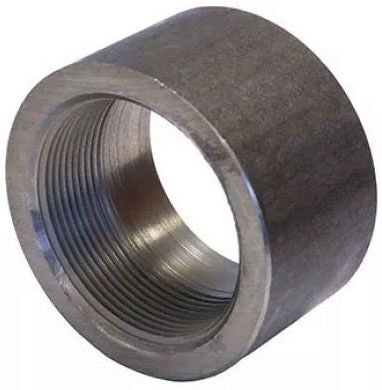

The ASC ENGINEERED SOLUTIONS 361168008 is a forged steel threaded half coupling rated for 3000 lb service. It provides a robust, high-pressure threaded connection point for piping systems where a full coupling is not required. The half coupling design allows one end to be welded directly to a pipe or vessel while the threaded bore accepts a male-threaded pipe end. Licensed plumbers and pipefitters install this fitting in industrial, commercial, and high-pressure piping applications where pressure integrity and material strength are critical requirements.

This half coupling is suited for use in high-pressure piping systems across industrial and commercial installations. The 3/4 inch size and 3000 lb pressure rating make it appropriate for steam, hydraulic, gas, and liquid service lines where weld-and-thread connections are specified. It is a standard component in process piping, mechanical rooms, and utility systems that demand forged steel fittings.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 3000 lb pressure rating suitable for demanding industrial applications
• 3/4 inch fitting size for standard pipe connections
• Threaded half coupling design allows direct weld-to-pipe on one end with threaded bore on the other
• Compact, lightweight form at 0.21 pounds per unit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch threaded piping connections requiring a 3000 lb rated forged steel half coupling.

Installation Notes

Installation is performed by licensed plumbers or certified pipefitters in accordance with applicable mechanical and piping codes. Shut off and depressurize the piping system completely before fitting installation or replacement. The weld end should be properly prepared and welded by a qualified welder before the threaded connection is made up. Apply appropriate thread sealant or PTFE tape to the threaded connection per project specifications.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 3/4 inches
• Pressure Rating: 3000 lb
• Type: Threaded Half Coupling
• Item Weight: 0.21 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361168008
