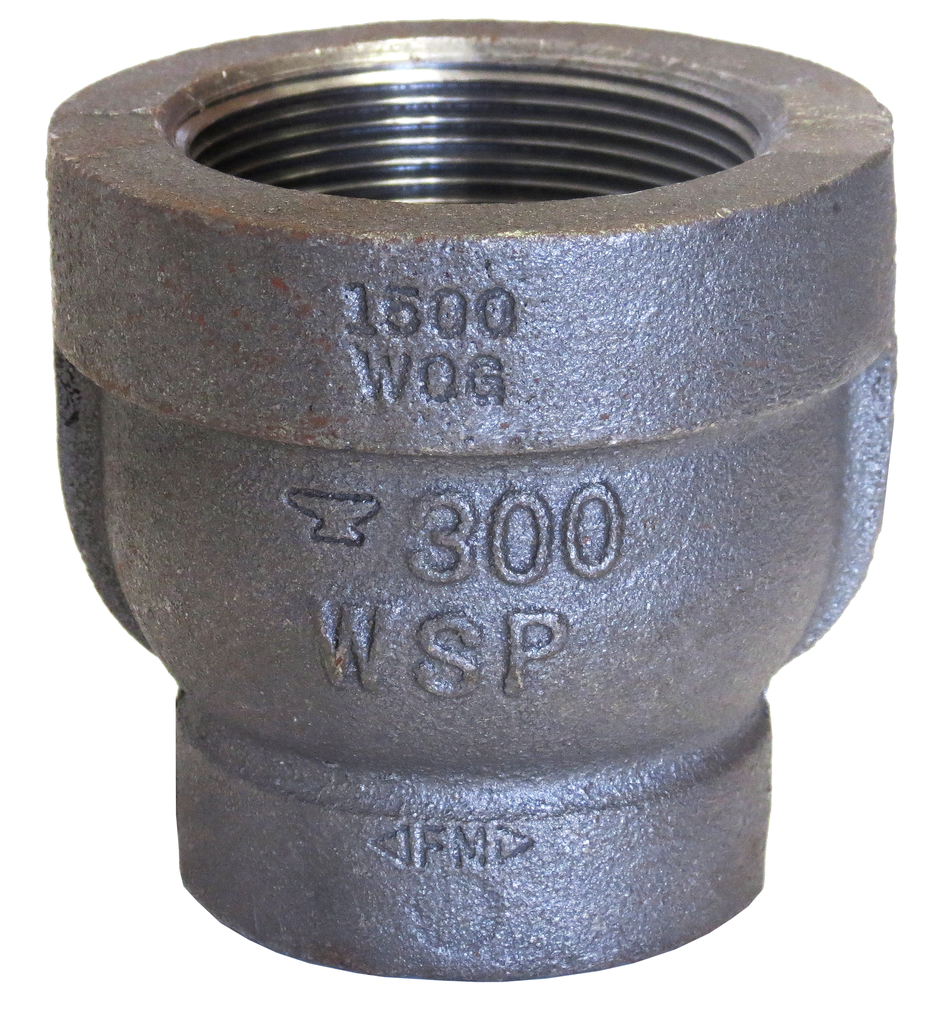

Asc Engineered Solutions 310543004 Malleable Iron Reducer

Product Description

The ASC Engineered Solutions 310543004 is a black malleable iron reducing coupling designed to connect female pipe thread (FPT) ends of two different diameters in threaded piping systems. Built to Extra Heavy (XH) strength classification, this reducer handles demanding pressure conditions in commercial and industrial plumbing and gas distribution applications. It transitions from a 1-inch female thread on one end to a 1/4-inch female thread on the other. Dimensional and pressure rating compliance follows ASME B16.3, with threads cut to ASME B1.20.1 standards. The part weighs 0.66 pounds. Licensed plumbers and pipefitters are the primary installers of this fitting.

This reducer is suited for residential and commercial plumbing, fire protection, and gas piping installations where a threaded reduction from 1 inch to 1/4 inch is required. The black finish indicates suitability for gas line and industrial applications. The UL and FM listings make it appropriate for fire protection and hazardous-location piping systems where listed components are required by code. The malleable iron construction handles the mechanical stress common in vibration-prone or high-cycle threaded assemblies.

Key Features

• Extra Heavy (XH) strength rating for high-pressure and demanding service conditions
• Female pipe thread (FPT) on both ends for all-internal thread connections
• Black product finish suitable for gas and industrial piping systems
• Malleable iron construction per ASTM A-197 for ductility and mechanical toughness
• Dimensional compliance to ASME B16.3 and thread form compliance to ASME B1.20.1
• UL and FM listed for fire protection and listed-component piping applications

Compatibility

Designed as an OEM-style threaded reducer for use in standard NPT-threaded malleable iron pipe systems requiring a 1-inch to 1/4-inch FPT reduction in plumbing, gas, and fire protection piping.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and ASME B16.3 requirements. Shut off and depressurize the piping system completely before disassembling any threaded connection. Apply appropriate thread sealant or PTFE tape to the male threads being engaged into this fitting. Do not over-torque the connection, as malleable iron threads can crack under excessive force.

Technical Specifications

• Material: Malleable Iron (ASTM A-197)
• Finish: Black
• Size 1 (Large End): 1 inch FPT
• Size 2 (Small End): 0.25 inch FPT
• Connection Type: Female Pipe Thread (FPT) x Female Pipe Thread (FPT)
• Strength: Extra Heavy (XH)
• Dimensional Specification: ASME B16.3
• Thread Specification: ASME B1.20.1
• Material Specification: ASTM A-197
• UL/FM Listed: Yes
• Weight: 0.66 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 310543004
