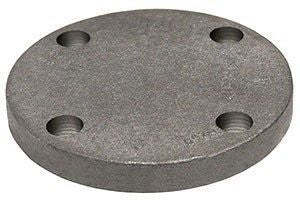

Asc Engineered Solutions 308016203 Blind Flange 2-1/2 in

Product Description

The ASC ENGINEERED SOLUTIONS 308016203 is a Class 125 cast iron blind flange designed to seal the end of a pipe, fitting, or valve in low-pressure piping systems. At 2-1/2 inches, this flange blanks off an open pipe end to allow for system pressure testing, future expansion points, or permanent termination. The black coating provides corrosion resistance in dry or mildly exposed environments. With an outer diameter of 7 inches and a weight of 7.09 pounds, it meets the dimensional standards expected of Class 125 cast iron flanged fittings. Licensed plumbers and pipefitters install this type of fitting in commercial and industrial piping systems.

This blind flange is suited for commercial plumbing, industrial process piping, and mechanical systems where a flanged pipe end requires a secure, pressure-rated closure. Class 125 cast iron flanges are commonly found in water distribution, drainage, and low-pressure service lines in both new construction and retrofit applications. Domestically produced, this flange meets standard dimensional requirements for Class 125 flat-face cast iron flanged fittings used across a range of building mechanical systems.

Key Features

• Class 125 pressure rating suitable for low-pressure piping applications
• Cast iron construction provides durability in mechanical and plumbing environments
• Black coating for corrosion resistance in typical service conditions
• 2-1/2 inch pipe size with 7 inch outer diameter
• Blind type design permanently or temporarily closes an open flanged pipe end
• Domestically produced to standard Class 125 dimensional requirements

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with Class 125 cast iron flanged piping systems using 2-1/2 inch pipe size.

Installation Notes

Installation of this blind flange should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including IPC guidelines. Depressurize and isolate the pipe system fully before removing any existing flange or fitting. Use appropriate gasket material between mating flange faces and torque bolts evenly in a cross pattern to achieve a uniform seal. Do not exceed the Class 125 pressure rating of the installed system.

Technical Specifications

• Fitting Size: 2-1/2 inches
• Outer Diameter: 7 inches
• Class Rating: 125 lbs
• Fitting Material: Cast Iron
• Coating: Black
• Type: Blind
• Item Weight: 7.09 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 308016203
