Asc Engineered Solutions 308010602 Reducing Flange 4 in

Product Description

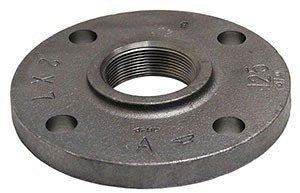

The ASC ENGINEERED SOLUTIONS 308010602 is a 4-inch Class 125 black cast iron reducing flange designed for use in low-pressure piping systems. This flange provides a reliable mechanical connection at pipe transitions where a reduced bolt-circle or face diameter is required. Cast iron construction delivers the durability and rigidity needed in industrial and commercial installations. The Class 125 pressure rating and black coating finish make it a standard choice for water, drain, and general-purpose service piping applications. Licensed plumbers and pipefitters are the primary installers of this fitting.

This reducing flange is suited for commercial and industrial piping systems operating under Class 125 pressure conditions. The 4-inch pipe size and 11-inch outer diameter accommodate standard reducing flange installations in mechanical rooms, process piping, and building service plumbing. It is used wherever a flanged transition is needed between a pipe run and a mating component such as a valve, pump, or strainer body.

Key Features

• Class 125 pressure rating for low-pressure water and general service piping
• Cast iron construction provides rigid, durable flanged connections
• Black coating finish for corrosion resistance in standard service environments
• 4-inch pipe size with 11-inch outer diameter for reducing flange applications
• Domestically manufactured fitting

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Class 125 cast iron flanged piping systems with 4-inch pipe connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC. Shut off and depressurize the piping system completely before removing or installing any flanged fitting. Use appropriate flange gaskets and fasteners rated for Class 125 service. Inspect mating flange faces for damage or debris before assembly to ensure a proper seal.

Technical Specifications

• Fitting Size: 4 inches
• Outer Diameter: 11 inches
• Class: 125 lbs
• Type: Reducing
• Fitting Material: Cast Iron
• Coating: Black
• Item Weight: 19.63 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 308010602
