Asc Engineered Solutions 308009000 Cast Iron Reducing Flange

Product Description

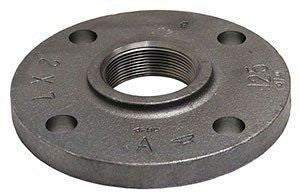

The ASC ENGINEERED SOLUTIONS 308009000 is a black cast iron reducing flange rated for 125 lb class service. It features a 2.5-inch pipe size with a 9-inch outer diameter, making it a heavy-duty fitting used to connect pipes of differing sizes within a piping system. The black coating provides corrosion resistance for typical service conditions. At 13 pounds, this is a substantial, domestically produced fitting built to handle the mechanical demands of industrial and commercial pipe assemblies. Licensed plumbers and pipefitters are the primary installers of this type of flange in pressure piping systems.

This reducing flange is suited for use in commercial and industrial piping installations where a transition between pipe sizes is required at a flanged connection point. It is appropriate for water, wastewater, and other compatible fluid systems operating within 125 lb class pressure ratings. The casting and black coating are consistent with standard pipe flange applications in mechanical rooms, pump stations, and process piping environments.

Key Features

• 125 lb class pressure rating for commercial and industrial service
• 2.5-inch pipe size with 9-inch outer diameter for reducing connections
• Cast iron construction provides durability and strength
• Black coating for corrosion resistance in typical service environments
• Domestically produced fitting
• Weighs 13 pounds, indicating heavy-duty construction

Compatibility

Designed as an OEM-style replacement or new-installation reducing flange for 125 lb class cast iron flanged piping systems with a 2.5-inch pipe size and 9-inch outer diameter.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing and mechanical codes, including IPC guidelines. Depressurize and isolate the piping system completely before removing any existing flange or fitting. Use appropriate gaskets and fasteners rated for 125 lb class service, and torque fasteners evenly in a cross pattern per standard flanged joint practices. Inspect mating flange faces for damage or debris before assembly.

Technical Specifications

• Fitting Size: 2.5 inches
• Outer Diameter: 9 inches
• Pressure Class: 125 lb
• Fitting Material: Cast Iron
• Coating: Black
• Type: Reducing
• Weight: 13 pounds
• Country of Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 308009000
