Asc Engineered Solutions 306036609 Cast Iron Reducing Tee

Product Description

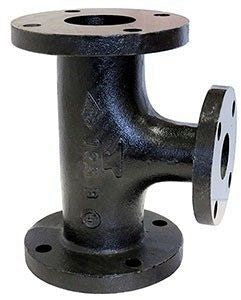

The ASC ENGINEERED SOLUTIONS 306036609 is a black cast iron reducing tee rated for 125-lb flanged service. This fitting connects two 6-inch run ports to a 4-inch branch outlet and is used to change flow direction or split flow within a piping system. The flanged ends allow bolted connections to matching flanged components without threading. Weighing 106.70 pounds, this is a heavy-duty fitting intended for professional installation in commercial or industrial piping systems. Licensed plumbers and pipefitters are the primary installers. The domestically produced cast iron construction provides durability in demanding service environments.

This reducing tee is suited for low-pressure piping systems where flanged connections are required. The 125-lb pressure class rating makes it appropriate for water, drainage, and compatible fluid service applications. It is used in commercial mechanical rooms, industrial process piping, and large-scale plumbing installations where a directional branch or flow split is needed between 6-inch and 4-inch piping runs. The black cast iron material is standard for many above-ground and indoor piping applications.

Key Features

• Black cast iron construction for durability in commercial and industrial service
• 125-lb flanged pressure class rating for bolted flange connections
• Reducing configuration: 6 in x 6 in run with 4 in branch outlet
• Domestically produced fitting
• Heavy-duty build at 106.70 pounds for long-term service reliability

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with 125-lb flanged cast iron piping systems using 6-inch main runs and 4-inch branch connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter. Isolate and depressurize the piping system fully before beginning work. Flange bolts should be tightened in a cross pattern to ensure even gasket compression; follow applicable IPC or local code requirements for flange assembly. Due to the substantial weight of this fitting, proper lifting equipment and additional personnel are recommended during handling and positioning.

Technical Specifications

• Material: Black Cast Iron
• Fitting Size: 6 inches x 6 inches x 4 inches
• Pressure Class: 125 lb Flanged
• Type: Reducing Tee
• Item Weight: 106.70 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 306036609
