Asc Engineered Solutions 306000605 Cast Iron 90 Elbow 2.5 in

Product Description

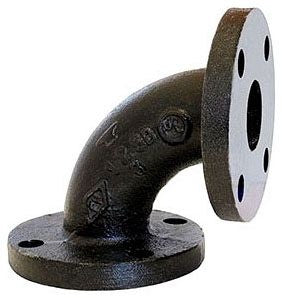

The ASC ENGINEERED SOLUTIONS 306000605 is a 2.5-inch flanged, short radius 90-degree elbow cast from gray iron and finished in a black coating. This fitting is designed to redirect piping flow at a sharp 90-degree angle within a compact space, making it suited for tight mechanical rooms and equipment pads where long-radius fittings will not fit. The flanged ends connect to standard Class 125 flanged systems. At 20 pounds, this is a heavy-duty, domestically manufactured fitting built for demanding piping applications. Licensed plumbers and pipefitters are the primary installers.

This elbow is used in commercial and industrial piping systems where cast iron flanged fittings are specified. Typical applications include wet pipe systems, drain lines, and mechanical system piping where a compact directional change is required. The short radius design reduces the overall installation footprint compared to standard long-radius elbows. The Class 125 flanged rating makes this fitting appropriate for low-pressure water service applications.

Key Features

• Short radius 90-degree turn for tight installation clearances
• Cast iron construction for durability in demanding piping environments
• Class 125 flanged ends for secure, bolted connections
• Black coating for corrosion resistance and finished appearance
• Domestically manufactured to consistent dimensional standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with Class 125 flanged cast iron piping systems in 2.5-inch nominal pipe size.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME B16.1 flanged fitting standards. Shut off and depressurize the piping system completely before removing or installing any flanged fitting. Use appropriate gaskets and fasteners rated for the system pressure and fluid type. Do not overtighten flange bolts unevenly; follow a cross-pattern tightening sequence to achieve a proper seal.

Technical Specifications

• Fitting Size: 2.5 inches
• Elbow Degree: 90
• Fitting Material: Cast Iron
• Coating: Black
• Flange Class: 125
• Weight: 20 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 306000605
