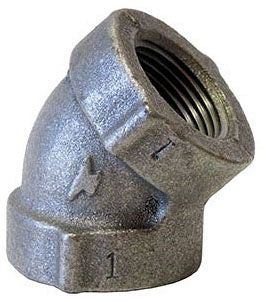

Asc Engineered Solutions 300029006 Cast Iron 45 Elbow 2.5 in

Product Description

The ASC ENGINEERED SOLUTIONS 300029006 is a 2.5-inch black cast iron 45-degree elbow designed for use in drainage, waste, and vent (DWV) piping systems. This fitting redirects flow at a 45-degree angle and is manufactured domestically from cast iron, providing the durability and mass required for long-service piping installations. It weighs 4.29 pounds and features a black coating finish. Licensed plumbers and pipefitters typically specify this type of fitting where cast iron is required by code or where long-term noise attenuation and structural integrity are priorities.

This elbow is suited for residential and commercial DWV applications where cast iron piping is specified. It is installed in sanitary drain lines, storm drainage systems, and vent stacks requiring a 45-degree change in direction. The 2.5-inch nominal size positions it for branch drain lines and sub-main runs in multi-story or high-load occupancy installations. Its black coating is standard for cast iron soil pipe fittings and requires no additional finishing prior to installation.

Key Features

• 45-degree elbow angle for controlled directional change in DWV piping runs
• 2.5-inch nominal fitting size for mid-range drain line applications
• Cast iron construction provides impact resistance and sound dampening
• Black coating applied at the factory — no field finishing required
• Domestically manufactured fitting
• 4.29-pound unit weight consistent with standard cast iron soil fittings

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2.5-inch cast iron DWV piping systems.

Installation Notes

Installation of cast iron soil fittings is typically performed by a licensed plumber in accordance with the International Plumbing Code (IPC) or applicable local codes. Shut off water supply and ensure the piping system is depressurized and drained before cutting into an existing line. Cast iron fittings of this type are commonly joined using no-hub couplings with a torque-limiting band clamp driver or by hub-and-spigot lead and oakum methods, depending on the existing system configuration. Support piping per code requirements to prevent stress on the fitting joints.

Technical Specifications

• Fitting Size: 2.5 inches
• Elbow Degree: 45 degrees
• Fitting Material: Cast Iron
• Coating: Black
• Item Weight: 4.29 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 300029006
