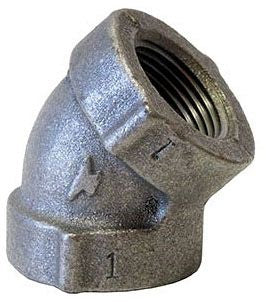

Asc Engineered Solutions 300028602 Cast Iron 45 Elbow 1 in

Product Description

The ASC ENGINEERED SOLUTIONS 300028602 is a 1-inch black cast iron 45-degree elbow fitting designed for threaded pipe installations in commercial and industrial piping systems. This domestically produced fitting provides a 45-degree directional change in black iron piping runs and is installed by licensed plumbers, pipefitters, and mechanical contractors. The black coating gives it resistance to corrosion in dry service environments. At 0.85 pounds, it is a solid, durable fitting suited for gas distribution, steam, and other compatible piping applications that call for cast iron construction.

This elbow is used in residential and commercial piping systems where a 45-degree change in pipe direction is required. Common applications include natural gas supply lines, steam piping, and general black iron pipe distribution systems. It accepts standard 1-inch threaded pipe on both ends, making it compatible with NPT-threaded fittings and pipe sections of the same nominal size. The black finish is standard for gas piping and similar non-potable service lines.

Key Features

• 45-degree elbow geometry for directional changes in threaded pipe runs
• 1-inch nominal size with threaded connections on both ends
• Cast iron construction for durability in demanding service environments
• Black coating standard for gas and steam piping applications
• Domestically manufactured fitting

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch threaded black iron pipe systems in gas, steam, and general mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, the International Fuel Gas Code (IFGC), or the International Plumbing Code (IPC) as appropriate to the service. Shut off and depressurize the piping system completely before making any fitting connections. Apply an approved pipe thread sealant or PTFE tape rated for the intended service to all threaded joints before assembly. Do not use this fitting in potable water service unless confirmed suitable by local code and the authority having jurisdiction.

Technical Specifications

• Fitting Size: 1 inch
• Elbow Degree: 45 degrees
• Fitting Material: Cast Iron
• Connection Type: Threaded
• Coating: Black
• Item Weight: 0.85 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 300028602
