Asc Engineered Solutions 2400223752 Tube Clamp Pvc Cushion

Product Description

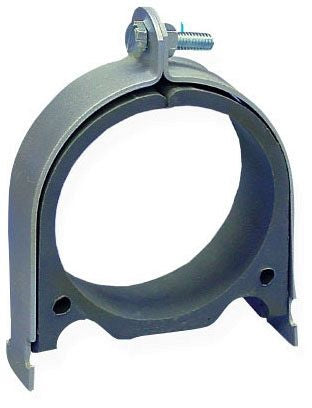

The ASC Engineered Solutions 2400223752 is a strut-mount tube clamp with a PVC cushion, designed to secure tubing and pipe in mechanical, HVAC, and plumbing installations. The clamp accommodates a 1-1/8 inch outer diameter tube at a 1 inch nominal size and attaches directly to standard strut channel. The integrated PVC cushion isolates the tube from the metal clamp body, reducing vibration transmission and preventing abrasion on the tube surface. At 0.18 pounds per unit, it is lightweight and practical for installations requiring multiple support points along a run.

This clamp is suited for residential and commercial applications where tubing or pipe must be supported from strut framing. Typical uses include refrigerant line sets, copper water lines, and conduit runs secured to unistrut or similar strut channel systems. The PVC cushion makes it appropriate for copper, steel, or other tubing materials where metal-on-metal contact is undesirable. Pipefitters, plumbers, and HVAC technicians commonly install this type of hardware during rough-in and equipment piping work.

Key Features

• Fits 1-1/8 inch outer diameter tubing at 1 inch nominal size
• PVC cushion reduces vibration and protects tube surface from abrasion
• Designed for direct attachment to standard strut channel
• Lightweight construction at 0.18 pounds per unit
• Suitable for copper, steel, and similar tubing materials

Compatibility

Designed as an OEM-style strut tube clamp for use with standard strut channel systems in mechanical, HVAC, and plumbing piping support applications requiring a 1-1/8 inch OD tube clamp with cushion.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or HVAC technicians as part of a pipe support system. Ensure the strut channel is properly anchored before attaching the clamp. Shut off fluid or refrigerant flow and depressurize the line before positioning the clamp if working on an active system. Follow applicable mechanical codes for support spacing requirements for the pipe or tube type being secured.

Technical Specifications

• Outer Diameter: 1-1/8 inches
• Nominal Size: 1 inch
• Type: Tube Clamp
• Cushion Material: PVC
• Weight: 0.18 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 2400223752
