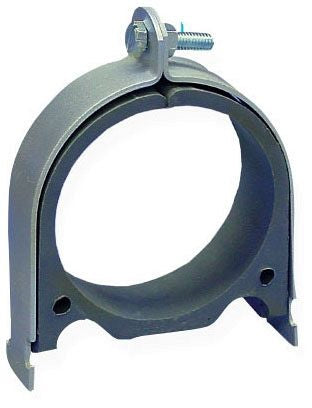

Asc Engineered Solutions 2400223703 Cushioned Tube Clamp

Product Description

The ASC ENGINEERED SOLUTIONS 2400223703 is a PVC-cushioned tube clamp designed for securing 3/8 inch OD tubing to strut channel in mechanical and plumbing systems. The clamp uses a nominal 1/4 inch tube size designation and incorporates a PVC cushion insert that isolates the tubing from the steel strut, reducing vibration transmission and protecting the tube surface. This type of fitting is commonly installed by plumbers, HVAC technicians, and pipefitters when routing copper, plastic, or soft-metal tubing along strut framing in commercial and residential mechanical rooms or equipment installations. The part weighs 0.11 pounds per unit.

This cushioned strut clamp is suited for use in applications where tubing must be supported along overhead or wall-mounted strut channel runs. The PVC cushion insert helps prevent contact noise and minor abrasion wear between the tube and the clamp body. It is typically used in HVAC refrigerant line support, plumbing supply line routing, and light mechanical piping systems where strut framing is the primary support structure.

Key Features

• PVC cushion insert isolates tubing from metal strut channel, reducing vibration and contact wear
• Designed for 3/8 inch OD tubing with 1/4 inch nominal tube size
• Compatible with standard strut channel framing systems
• Lightweight at 0.11 pounds per unit for easy handling and bulk installation
• Suitable for copper, plastic, and soft-metal tubing applications

Compatibility

Designed as an OEM-style replacement and standard fitment clamp for use with strut channel support systems accepting 3/8 inch OD tubing in commercial and residential mechanical installations.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or pipefitters during rough-in or equipment service work. Shut off the relevant fluid or refrigerant system before repositioning or replacing tube supports. Verify that the strut channel size and hardware match the clamp before securing. Follow applicable local mechanical codes and manufacturer torque guidance for strut hardware fasteners.

Technical Specifications

• Outer Diameter: 3/8 inches
• Nominal Tube Size: 1/4 inches
• Type: Tube Clamp
• Cushion Material: PVC
• Mounting: Strut Channel
• Weight: 0.11 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 2400223703
