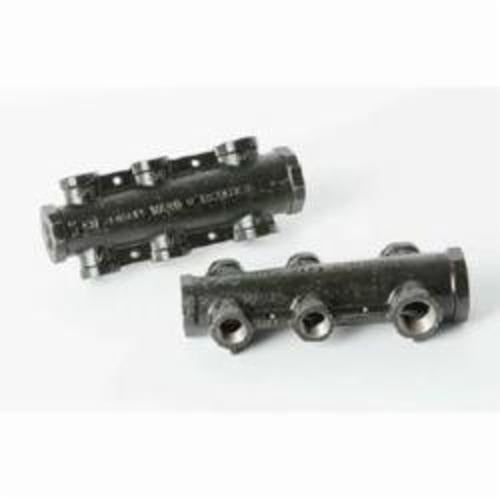

Asc Engineered Solutions 1X4E.WFM Cross Manifold Malleable Iron

Product Description

The ASC Engineered Solutions 1X4E.WFM is a cross manifold designed for gas distribution piping systems in residential and light commercial applications. It features one 1-inch inlet and four 3/4-inch outlets, allowing a single supply line to branch into multiple service runs. Constructed from malleable iron, this manifold delivers the durability and pressure resistance required in natural gas and propane piping installations. It is domestically manufactured and intended for installation by licensed plumbers and gas fitters working to IFGC and local code requirements.

This manifold is well suited for new construction or retrofit projects where a central gas distribution point is needed to supply multiple appliances or zones from a single trunk line. Typical applications include residential utility rooms, mechanical rooms, and light commercial service installations where code-compliant gas manifolding is required. The 1-inch inlet accommodates standard trunk line sizing, while the four 3/4-inch outlets match common branch line sizes used for furnaces, water heaters, dryers, and similar gas-fired equipment.

Key Features

• One 1-inch inlet feeds four independent 3/4-inch outlets for multi-appliance gas distribution
• Malleable iron construction provides strength and resistance to mechanical stress in piping assemblies
• Domestic manufacture supports projects with domestic-sourcing requirements
• Cross manifold configuration simplifies branch piping layout in tight mechanical spaces
• Compatible with standard threaded pipe fittings and gas piping components

Compatibility

Designed as an OEM-style replacement or new-installation fitting for threaded malleable iron gas piping systems using 1-inch inlet and 3/4-inch outlet connections.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with the International Fuel Gas Code and all applicable local codes. Shut off and verify the gas supply is fully depressurized before beginning any fitting work. Use appropriate thread sealant rated for gas service on all threaded connections. Pressure-test the completed assembly per local code requirements before restoring gas supply.

Technical Specifications

• Inlet Size: 1 inch
• Outlet Size: 3/4 inch
• Number of Outlets: 4
• Material: Malleable Iron
• Country of Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 1X4E.WFM
