Asc Engineered Solutions 0818900565 3/4 Blk Imi Cap

Product Description

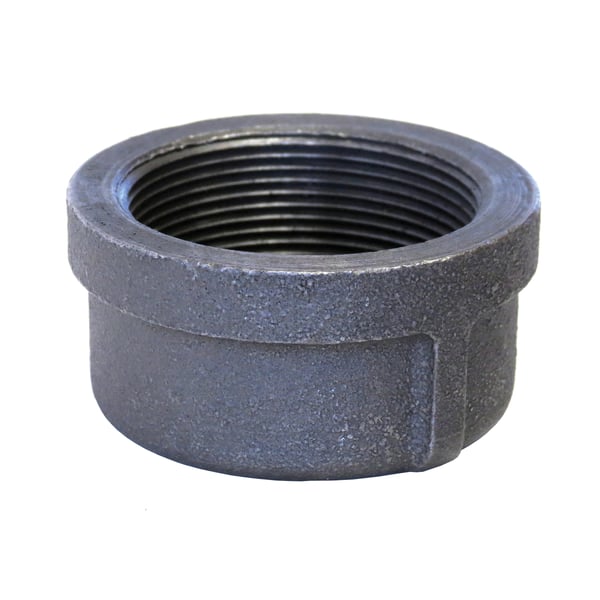

The ASC ENGINEERED SOLUTIONS 0818900565 is a SPF/Anvil Pipe Cap, Standard, Series: FIG 3124, Fitting/Connector Type: Cap, 3/4 in Nominal, FNPT, 0.97 in Length, SCH 40/STD, 150 lb, 175 psi, Malleable Iron, Black Oxide, -20 deg F, Import. It is an internationally manufactured malleable iron pipe fitting.

• Internationally Manufactured Malleable Iron Pipe Fitting.
• ASME B16.3
• cULus Listed

Product Highlights

This pipe cap is ideal for use in various piping systems. It adheres to ASME B16.3 standards, is cULus Listed, and FM Approved.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0818900565
• Country of Origin: Import

Technical Specifications

• Domestic/Import: Import
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Cap
• Length: 0.97 in
• Material: Malleable Iron
• Nominal Size: 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3124
• Temperature Rating: -20 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
