Asc Engineered Solutions 0810017608 3 Blk Imi 90 Street Ell

Product Description

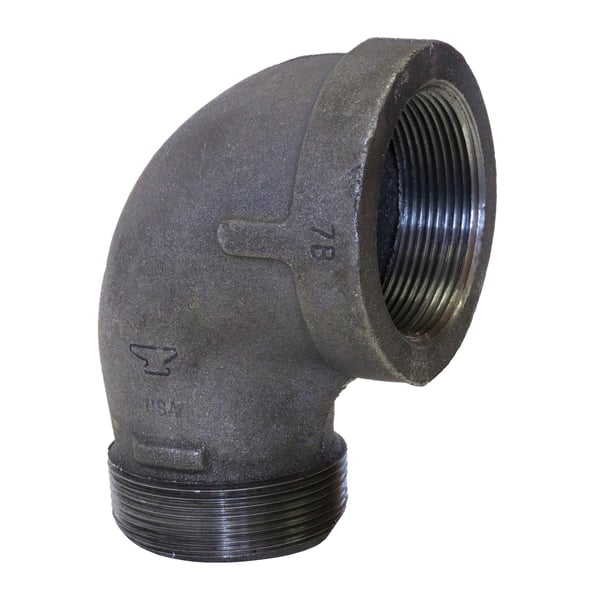

The ASC ENGINEERED SOLUTIONS 0810017608 is a SPF/Anvil Street Elbow, Standard, Series: FIG 3103, a 90-degree elbow fitting/connector with a 3-inch nominal size and MNPT x FNPT end style. It is made from malleable iron with a black oxide finish and is internationally manufactured.

• Internationally Manufactured Malleable Iron Pipe Fitting
• ASME B16.3
• cULus Listed
• FM Approved

Product Highlights

Standard street elbow with 3 in nominal size, MNPT x FNPT end style, and 150 lb pressure class.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0810017608

Technical Specifications

• Domestic/Import: Import
• End Style: MNPT x FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3 in
• Pressure Class: 150 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3103
• Temperature Rating: -20 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
