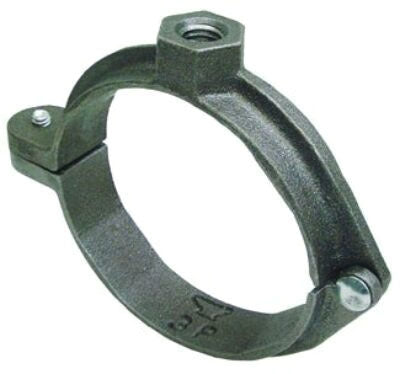

Asc Engineered Solutions 0560018889 FIG 138R extension split pipe clamp (3 in)

Product Description

ASC Engineered Solutions 0560018889 FIG 138R extension split pipe clamp is a malleable iron, hinged split ring hanger designed to secure 3 in pipe or tube. It accepts 1/2 in threaded rod and provides a 300 lb load capacity with a tapered interior ring to prevent moisture entrapment. The single closure screw enables rapid installation; the clamp is suitable for refrigeration or compressor piping and is rated to 450 deg F.

• Hinged design with single closure screw for rapid installation
• Accepts 1/2 in threaded rod; rated 300 lb load capacity
• Tapered interior ring prevents entrapment of condensed moisture; suitable for refrigeration or compressor piping

Product Highlights

Hinged extension split clamp for 3 in pipe; malleable iron construction; 450 deg F rating

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0560018889
• Country of Origin: Import

Technical Specifications

• Manufacturer: ASC Engineered Solutions
• MPN: 0560018889
• Item Number: 46262
• Series: FIG 138R
• Product Type: Extension split pipe clamp / split ring hanger
• Material: Malleable iron
• Finish: Plain
• Load Capacity: 300 lb
• Pipe Size: 3 in
• Rod Size: 1/2 in (threaded)
• Suitable For Use With: 3/4 through 3 in pipe
• Temperature Rating: 450 deg F
• Design: Hinged with single closure screw
• Interior Feature: Tapered interior ring to prevent moisture entrapment
• Applicable Standard: Federal Specification A-A-1192A; WW-H-171-E; ANSI/MSS-SP-69
• Origin: Import
