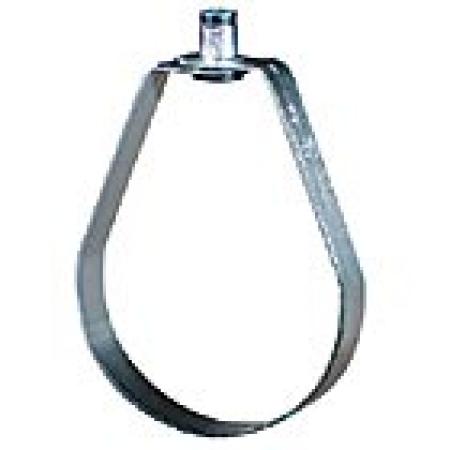

Asc Engineered Solutions 0500301767 69 Adjustable Band Hanger (2-1/2 in)

Product Description

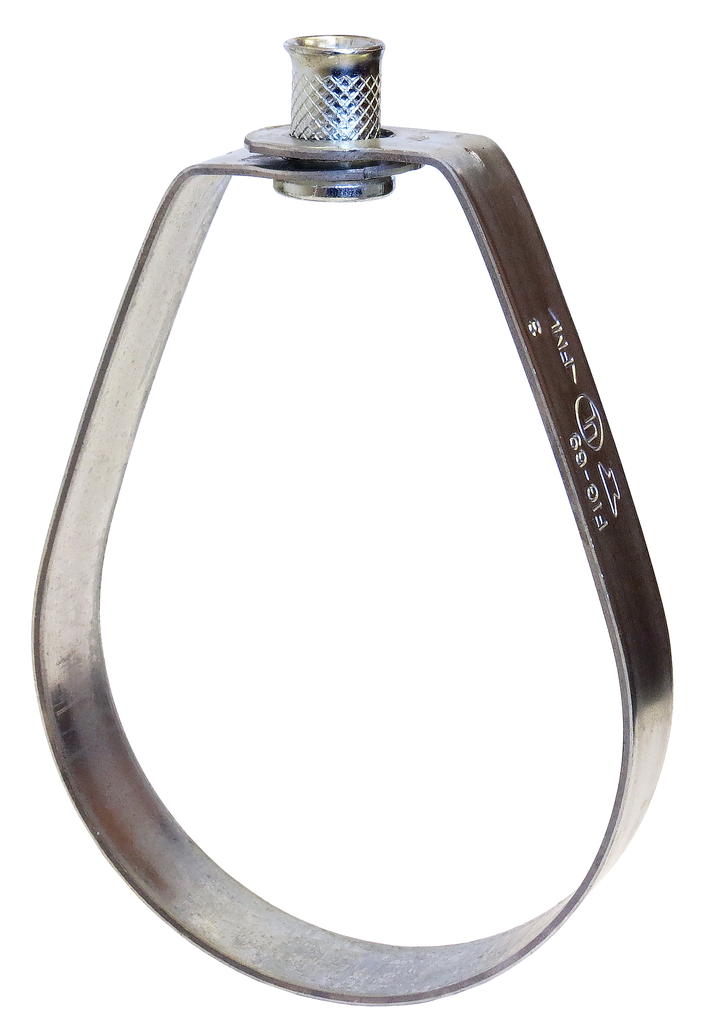

Asc Engineered Solutions 0500301767 is a FIG 69 adjustable swivel ring hanger for 2-1/2 in pipe used to suspend non-insulated stationary pipelines. Constructed of carbon steel with a pre-galvanized zinc finish, the hanger provides a 525 lb rated load capacity with a 3/8 in rod and a temperature rating to 650 deg F. The design includes countersunk threads and a captured knurled swivel nut for vertical adjustment.

• 525 lb load capacity; designed for 2-1/2 in pipe with 3/8 in rod
• Carbon steel construction with pre-galvanized zinc finish and 3/4 in strap width
• Captured knurled swivel nut with countersunk threads; temperature rating to 650 deg F

Product Highlights

FIG 69 adjustable swivel ring hanger; 525 lb capacity; pre-galvanized carbon steel; complies with ANSI/MSS SP-69/SP-58, cULus and FM listings

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0500301767
• Country of Origin: US

Technical Specifications

• Brand: Asc Engineered Solutions
• Manufacturer Part Number: 0500301767
• Series: FIG 69
• Type: Adjustable swivel ring hanger
• Pipe Size: 2-1/2 in (IPS)
• Rod Size: 3/8 in
• Strap Width: 3/4 in
• Load Capacity: 525 lb
• Material: Carbon steel
• Material Specification: ASTM A653
• Finish: Pre-galvanized zinc
• Finish Specification: ASTM B633
• Temperature Rating: 650 deg F
• Thread Specification: MSS SP58, MSS SP69
• Standards/Approvals: ANSI/MSS SP-69; ANSI/MSS SP-58; cULus Listed; FM Approved
• Application: Suspension of non-insulated stationary pipelines
• Country of Origin: US
• UPC: 690291143854
• UOM: EA
