Asc Engineered Solutions 0390003044 7001 3 Ptd Std E Gskt Cplg

Product Description

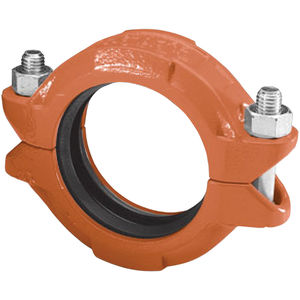

The ASC ENGINEERED SOLUTIONS 0390003044 is a Gruvlok Pipe Coupling, FIG 7001 series, designed as a flexible coupling for joining pipes in wet and dry systems. It features a grooved fitting/connector type with a 3 in nominal size, suitable for SCH 40/STD pipes. It has a pressure rating of 1000 psi and is constructed from ductile iron with a rust-inhibiting orange painted finish.

• Used to join pipes in both wet and dry systems
• Suitable for Grooved-End Pipes
• Temperature Rating: -40 to 250 deg F

Product Highlights

This coupling is cULus Listed, FM Approved, NSF/ANSI 61, and UPC Listed, ensuring compliance with industry standards.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0390003044
• Country of Origin: Domestic

Technical Specifications

• Color: Orange
• End Style: Grooved
• Finish: Rust Inhibiting Orange Painted
• Fitting/Connector Type: Coupling
• Material: Ductile Iron
• Nominal Size: 3 in
• Pressure Rating: 1000 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 7001
• Temperature Rating: -40 to 250 deg F
• Type: Flexible, Bolted, Straight Type
• Manufacturer: ASC Engineered Solutions
• Standard: UL (CANADA AND US), FM, UPC/IAPMO, NSF 61 APPLICABLE STANDARD
• Application: MECHANICAL, PLUMBING, PIPING, MINING, OIL FIELD PIPING
• Material Specification: ASTM A536 GRADE 65-45-12
• End Connection: GROOVED X GROOVED END CONNECTION
• Gasket: YES; STYLE C GRADE E GREEN ASTM D2000 EPDM GASKET DETAILS
• Maximum End Load: 9621 POUND
• Bolt Size: 1/2 INCH DIAMETER X 3 INCH LENGTH
• Model: 7001
• Size A: 3 INCH
• Size B: 3 INCH
