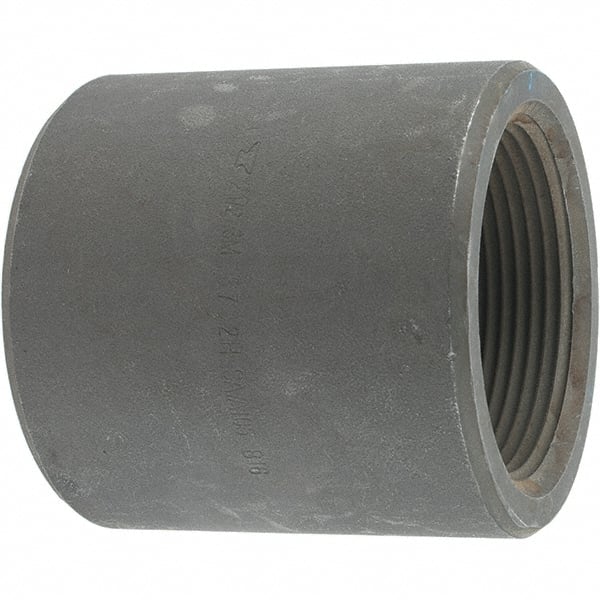

Asc Engineered Solutions 0361156805 Pipe Coupling 2-1/2 inch

Product Description

The ASC ENGINEERED SOLUTIONS 0361156805 pipe coupling, also known as Anvil® FIG 2117 series, is designed for connecting pipes. It has a 2-1/2 inch nominal size with FNPT end style and a pressure class of 3000 lb. Constructed from forged steel with a black oxide finish, it measures 3.62 inches in length and diameter.

• 3000# Forged Steel High Pressure Fitting
• Approved by FM, IAPMO, UL, and ULC
• Compliant with ASME B16.11

Product Highlights

The 0361156805 coupling is suitable for high-pressure applications, ensuring secure and reliable pipe connections. It meets industry standards and is ideal for various industrial and commercial piping systems.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0361156805

Technical Specifications

• Fitting/Connector Type: Coupling
• Nominal Size: 2-1/2 in
• End Style: FNPT
• Pressure Class: 3000 lb
• Length: 3.62 in
• Material: Steel
• Finish: Black Oxide
• Dimensions: 3.62 in Dia
• Domestic/Import: Domestic
• Series: FIG 2117
• Manufacturer: ASC Engineered Solutions
• Fitting Type: Coupling
• Pressure Rating: 300 to 3000 psi
• Connection Type: FNPT|FNPT
• Method of Manufacture: Forged
