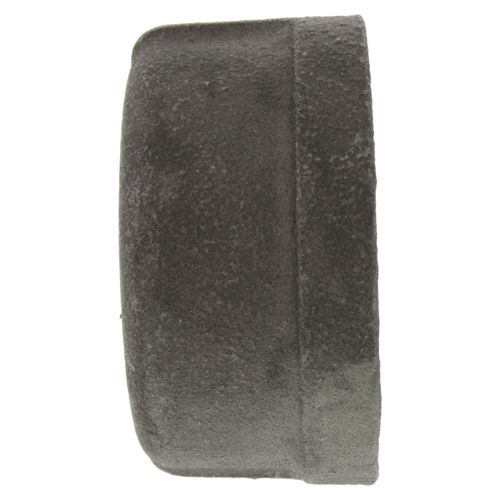

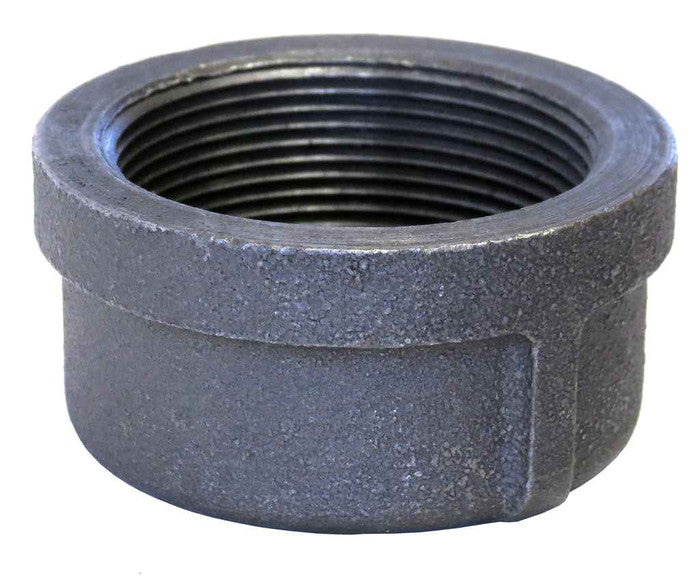

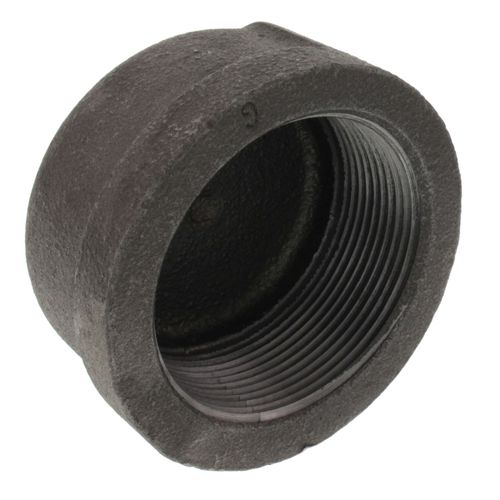

Asc Engineered Solutions 0318900727 2 in Black MI 150# Cap

Product Description

The ASC ENGINEERED SOLUTIONS 0318900727 Anvil® Pipe Cap, from the FIG 1124 series, is designed to hold two different pipe parts together and direct gas and liquid movement. This standard cap fitting has a 2 in nominal FNPT connection and is suitable for SCH 40/STD, with a pressure rating of 150 lb.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• cULus Listed, FM Approved, NSF/ANSI 61
• Conforms to ASME B16.3

Product Highlights

The Anvil® 1124 Series cap fitting is made from malleable iron with a black oxide finish and is suitable for temperatures between -20 to 150 deg F.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0318900727
• Country of Origin: USA

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Cap
• Material: Malleable Iron
• Nominal Size: 2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1124
• Temperature Rating: -20 to 150 deg F
• Type: Pipe Cap
• Manufacturer: ASC Engineered Solutions
• Thread Type: Female
• Connection Type: Threaded
• Additional Information: ASTM A197 Material Standard, Domestic
• Connection Size: 2 in
• Dimension Standards: ASME B16.3
• Material Construction: Malleable Iron
• End Conn Size 1: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Caps
• Product Type: Cap
• Product Finish: Black
• Product Material: Malleable Iron
• Brand: ASC Engineered Solutions
• Category: Black Iron
• Country of Origin: USA
• Class: 150 lb
