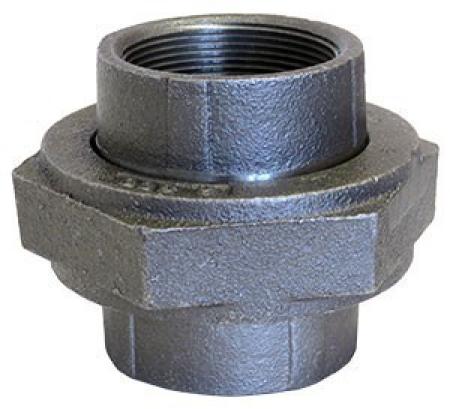

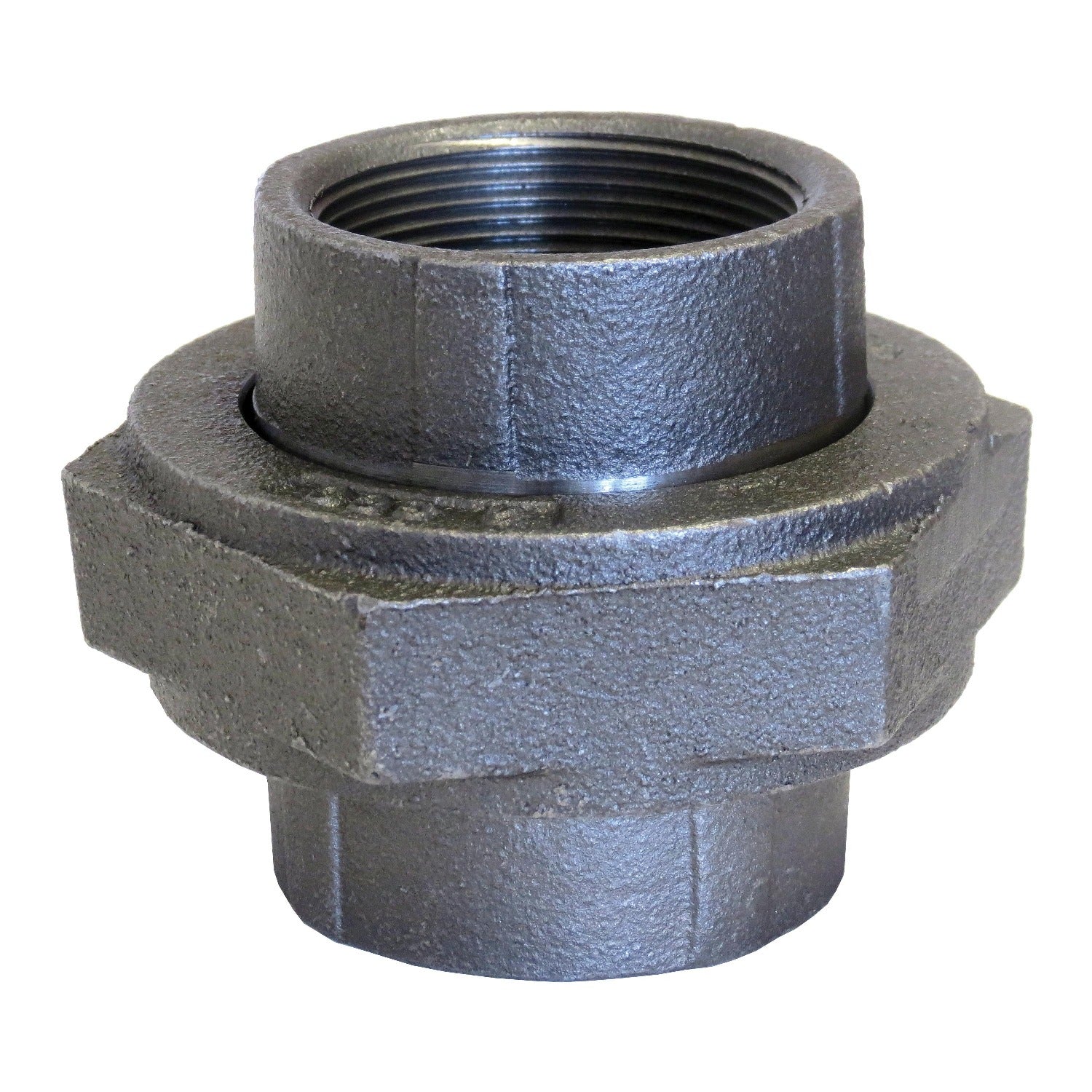

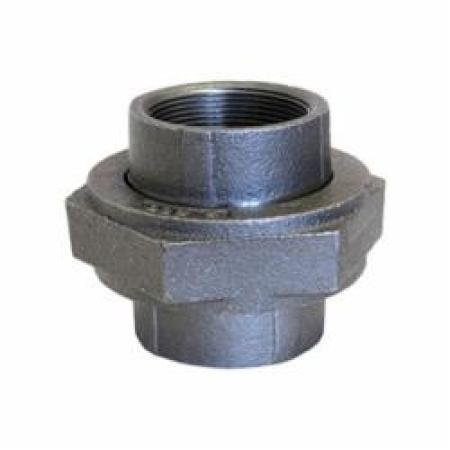

Asc Engineered Solutions 0312820004 Pipe Dart Union (1 in Nominal) FIG 832

Product Description

Asc Engineered Solutions 0312820004 is a FIG 832 pipe dart union constructed of high-test air-refined malleable iron with FNPT end connections. The union features bronze seats on both sides of the joint, a straight-through design to avoid trapped sediment, and an extra heavy shoulder on the swivel end and nut to resist pipe strain. It is finished in black oxide and rated to 600 psi with a 300 lb pressure class.

• Bronze seats on both sides of the joint for corrosion resistance and true bearing surfaces
• Pressure class 300 lb; pressure rating 600 psi; temperature range -20 to 150 deg F

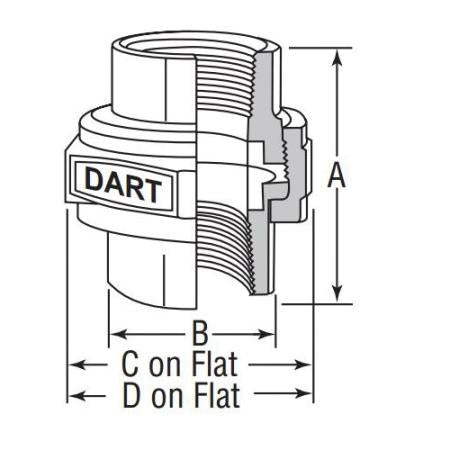

• 1 in nominal size with 3 in hex, 2-5/8 in length and 1-11/16 in diameter; FNPT end style

Product Highlights

FIG 832 malleable iron union with bronze seat ball joint, straight-through design, and 600 psi pressure rating.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0312820004
• Country of Origin: Domestic
