Asc Engineered Solutions 0311028203 2 Galv MI 45 St Ell

Product Description

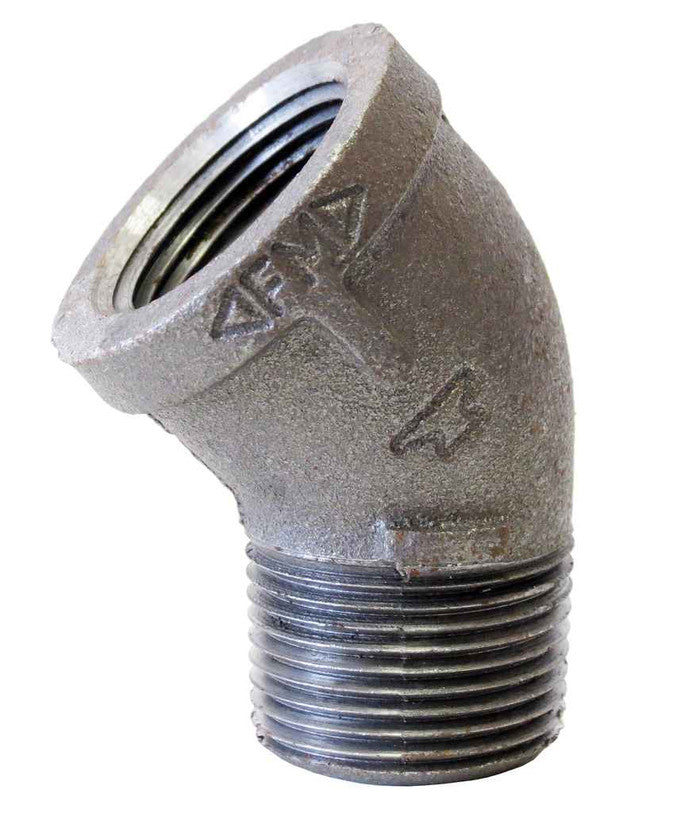

The ASC ENGINEERED SOLUTIONS 0311028203 is a 2 inch galvanized malleable iron street elbow, Fig 1104 Series, designed to connect two different pipe parts together and direct gas and liquid movement. This 45-degree elbow fitting conforms to ASME B16.3 and unions conform to ASME B16.39.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B1.20.1, ASTM A197
• cULus Listed, FM Approved, NSF/ANSI 61

Product Highlights

The fitting has a pressure class of 150 lb and is suitable for temperatures ranging from -20 to 150 deg F.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0311028203
• Country of Origin: US

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Finish: Galvanized
• Fitting/Connector Type: 45 deg Elbow
• Material: Iron
• Nominal Size: 2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40
• Series: FIG 1104
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: MPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 2
• Size 2: 2
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Finish: Galvanized
• Product Material: Malleable Iron
• Connection Size 1: 2 in
• Connection Size 2: 2 in
• Connection Type 1: FNPT
• Connection Type 2: MNPT
• Connection Type: FNPT|MNPT
• Fitting Type: 45 deg Elbow
• Material Construction: Malleable Iron
• Type: Street Pipe Elbow
• Size A: 2"
• Size B: 2"
• Connection Type A: Female NPT
• Connection Type B: Male NPT
• Angle: 45
• Includes Pre-Applied Thread Sealant: No
• Maximum Operating Pressure: 300 psi
• Standards: UL Listed, FM Approved, ASME B16.3, ASTM A197
• Minimum Operating Temperature: -20 F
• Maximum Operating Temperature: 350 F
• Primary Use: Air, Oil, Non-Potable Water
• Lead Free: No
• Class: 150 lb
