Asc Engineered Solutions 0310501804 2 1/2 XH BLK MI AAR 90 Ell

Product Description

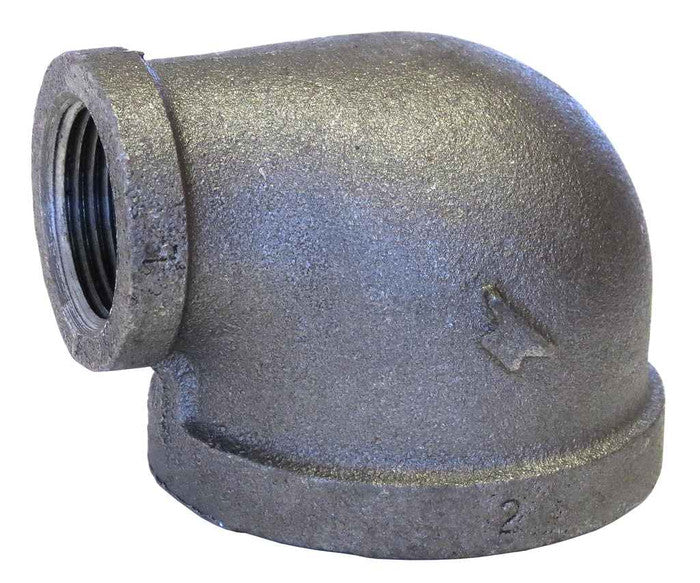

The ASC ENGINEERED SOLUTIONS 0310501804 is an Anvil Straight Pipe Elbow, FIG 1161 series, designed to hold two different pipe parts together and direct gas and liquid movement. It features a 90-degree elbow fitting/connector type with a 2-1/2 inch nominal size and FNPT end style. Made from malleable iron with a black oxide finish, it withstands pressures up to 1000 psi.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

Durable malleable iron pipe fitting with black oxide finish, suitable for various plumbing applications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310501804

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 2-1/2 in
• Pressure Class: 300 lb
• Pressure Rating: 1000 psi
• Series: FIG 1161
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Finish: Black
• Product Material: Malleable Iron
