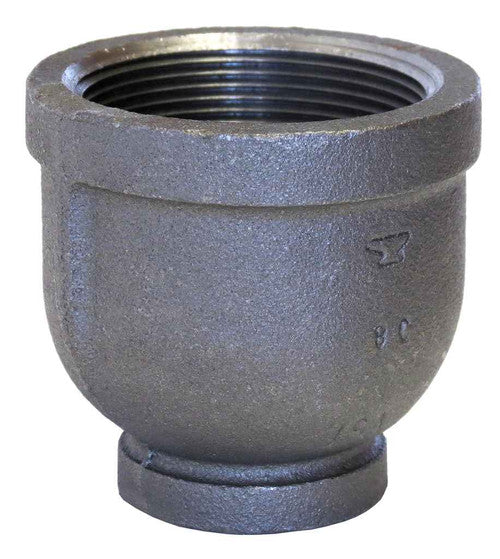

Asc Engineered Solutions 0310090204 2-1/2 x 1-1/2 Blk Mi 150# Reducer

Product Description

The ASC ENGINEERED SOLUTIONS 0310090204 is a 2-1/2 x 1-1/2 in Anvil Pipe Reducer, FIG 1125 Series reducing coupling fitting/connector. It is constructed from malleable iron with a black oxide finish. This reducer is suitable for use in -20 to 150 deg F applications.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• Standards/Approval: ASME B16.3
• cULus Listed

Product Highlights

The ASC ENGINEERED SOLUTIONS 0310090204 reducer connects different pipe sizes, facilitating gas and liquid movement with ASME B16.3, cULus, FM, and NSF/ANSI 61 approvals.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310090204
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Reducing Coupling
• Length: 3-1/4 in
• Material: Malleable Iron
• Nominal Size: 2-1/2 x 1-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1125
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Reducers
• Product Type: Reducer
