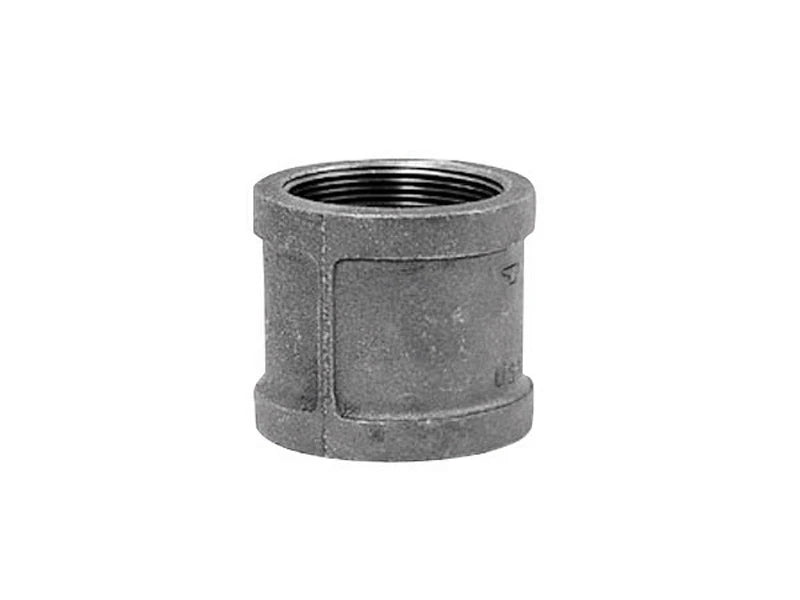

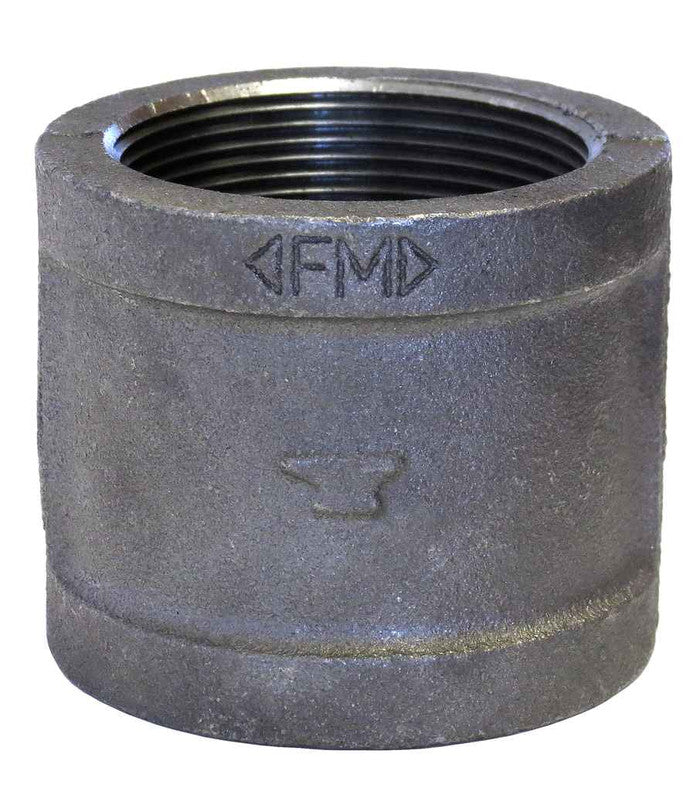

Asc Engineered Solutions 0310080205 1/2 Blk Mi Rh Coupling

Product Description

The ASC ENGINEERED SOLUTIONS 0310080205 is a right-hand pipe coupling from the FIG 1121 series. This coupling is designed to hold two different pipe parts together and direct gas and liquid movement. It has a 1/2 in nominal FNPT and a length of 1-5/16 in.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• Standards/Approval: ASME B16.3
• cULus Listed

Product Highlights

Right Hand, Series: FIG 1121, Fitting/Connector Type: Coupling, 1/2 in Nominal, FNPT, 1-5/16 in Length, 150 lb, 300 psi, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310080205
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Coupling
• Length: 1-5/16 in
• Material: Malleable Iron
• Nominal Size: 1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: FIG 1121
• Temperature Rating: -20 to 150 deg F
• Type: Right Hand
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 0.5
• Size 2: 0.5
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Product Group: Pipe Fittings
• Product Subgroup: Couplings
• Product Type: Coupling
• Product Finish: Black
• Product Material: Malleable Iron
• Country of Origin: US
• UL/FM: Yes
• Category: Black Iron
• Model Number: 0310080205
• Brand: ASC ENGINEERED SOLUTIONS
• UPC: 690291348198
