Asc Engineered Solutions 0310071006 2 1/2 Blk Mi Cross

Product Description

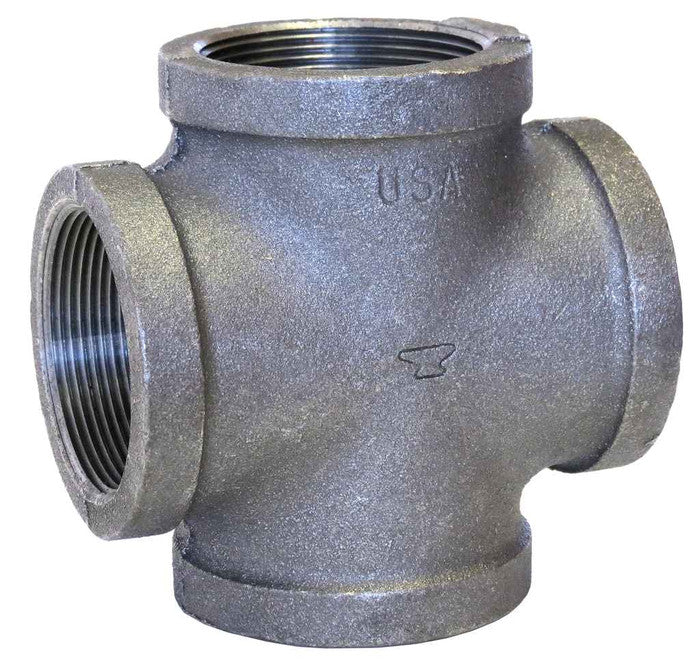

The ASC ENGINEERED SOLUTIONS 0310071006 Anvil Pipe Cross, Series FIG 1107, is a 2-1/2 in Nominal, FNPT fitting. Constructed from malleable iron with a black oxide finish, it is designed for SCH 40/STD and handles up to 300 psi. Suitable for temperatures ranging from -20 to 350 deg F.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ANSI/NSF 61-9/372
• This product can expose you to chemicals including Lead, Nickel (Metallic) and Di(2-ethylhexyl)phthalate (DEHP), which are known to the State of California to cause cancer, Lead and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Highlights

The ASC Engineered Solutions 0310071006 pipe cross is ideal for plumbing applications requiring a durable and reliable connection.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310071006
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Cross
• Material: Malleable Iron
• Nominal Size: 2-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1107
• Temperature Rating: -20 to 350 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• End Conn Size 4: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 2.5
• Size 2: 2.5
• Size 3: 2.5
• Size 4: 2.5
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Crosses
• Product Type: Cross
