Asc Engineered Solutions 0310056601 4X4X3 Blk Mi Tee

Product Description

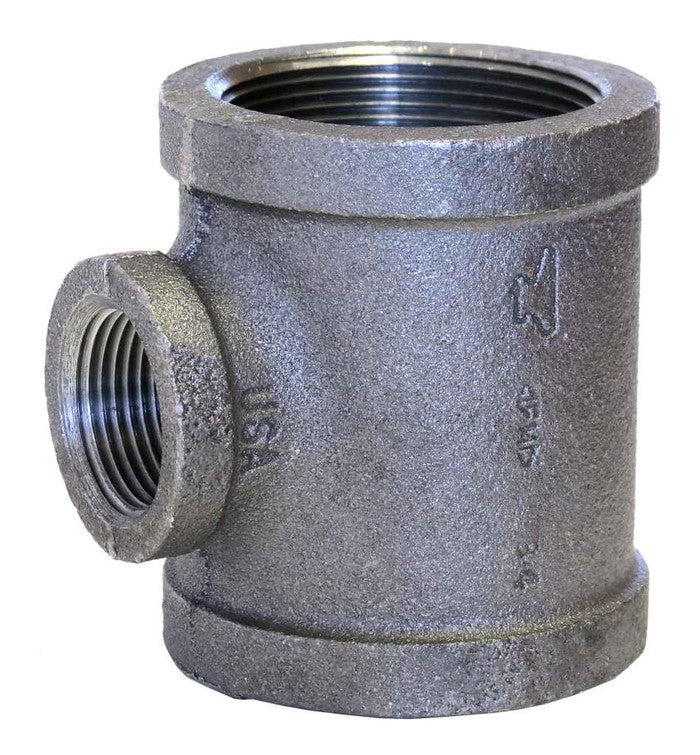

The ASC ENGINEERED SOLUTIONS 0310056601 Anvil Pipe Tee is a reducing tee fitting with 4 x 4 x 3 in nominal size. Constructed from malleable iron with a black oxide finish, this tee is suitable for SCH 40/STD and has a pressure rating of 300 psi.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3, cULus Listed, NSF/ANSI 61, FM Approved
• Temperature Rating: -20 to 350 deg F

Product Highlights

Durable malleable iron pipe fitting for connecting and directing gas and liquid movement. Approved by ASME B16.3, cULus Listed, NSF/ANSI 61, and FM.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310056601

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Tee
• Material: Malleable Iron
• Nominal Size: 4 x 4 x 3 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: 1105R
• Temperature Rating: -20 to 350 deg F
• Type: Reducing
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 4
• Size 2: 4
• Size 3: 3
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Tees
• Product Type: Tee
• Product Finish: Black
• Product Material: Malleable Iron
• Product Weight: 11.02 lbs
