Asc Engineered Solutions 0310047600 1 1/2x1x1 Blk Mi Tee

Product Description

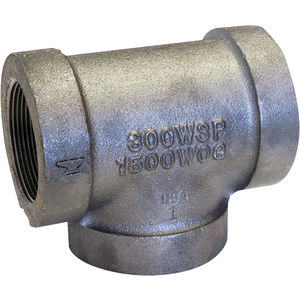

The ASC ENGINEERED SOLUTIONS 0310047600 is an Anvil Pipe Reducing Tee, FIG 1105R series, designed to hold two different pipe parts together and direct gas and liquid movement. It has a nominal size of 1-1/2 x 1 x 1 in. Made of malleable iron with a black oxide finish.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

The tee fitting is suitable for plumbing, mechanical, HVAC, industrial, fire protection, mining, oil, and gas applications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310047600

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Tee
• Length: 3-1/8 in
• Material: Malleable Iron
• Nominal Size: 1-1/2 x 1 x 1 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 1.5
• Size 2: 1
• Size 3: 1
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Tees
• Product Type: Tee
• Product Finish: Black
• Product Material: Malleable Iron
• APPLICATION: PLUMBING, MECHANICAL, HVAC, INDUSTRIAL, FIRE PROTECTION, MINING, OIL, GAS
• MODEL: 1105R
• REDUCING TYPE: REDUCING
• MATERIAL: MALLEABLE IRON
• FINISH: BLACK
• NOMINAL SIZE: 1-1/2 INCH X 1 INCH X 1 INCH
• SCHEDULE: STANDARD
• APPLICABLE STANDARD: ASME B16.3/B1.20.1, NSF/ANSI 61, UL (CANADA AND US), FM
• END CONNECTION: FEMALE THREADED X FEMALE THREADED X FEMALE THREADED
