Asc Engineered Solutions 0310011408 3X21/2 Blk Mi 90 Ell

Product Description

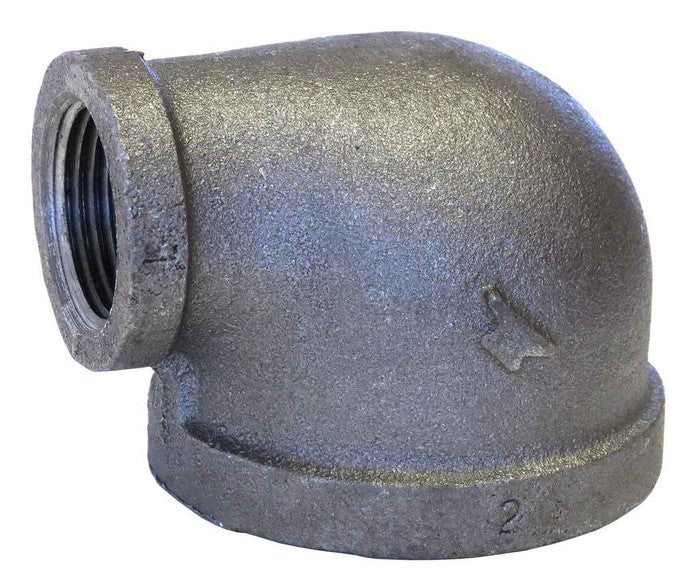

The ASC ENGINEERED SOLUTIONS 0310011408 is an Anvil Pipe Reducing Elbow, FIG 1101R series, designed to hold two different pipe parts together and direct gas and liquid movement. It features a 90-degree elbow with 3 x 2-1/2 in nominal FNPT. Made from malleable iron with a black oxide finish, it withstands pressures up to 300 psi.

• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Temperature Rating: -20 to 150 deg F

Product Highlights

Durable malleable iron pipe fitting with a black oxide finish, ideal for connecting pipes at a 90-degree angle in plumbing systems.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310011408

Technical Specifications

• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3 x 2-1/2 in
• Pressure Rating: 300 psi
• Series: FIG 1101R
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 3
• Size 2: 2.5
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Material: Malleable Iron
