Asc Engineered Solutions 0310001003 3/4 Blk Mi 150# 90 Ell

Product Description

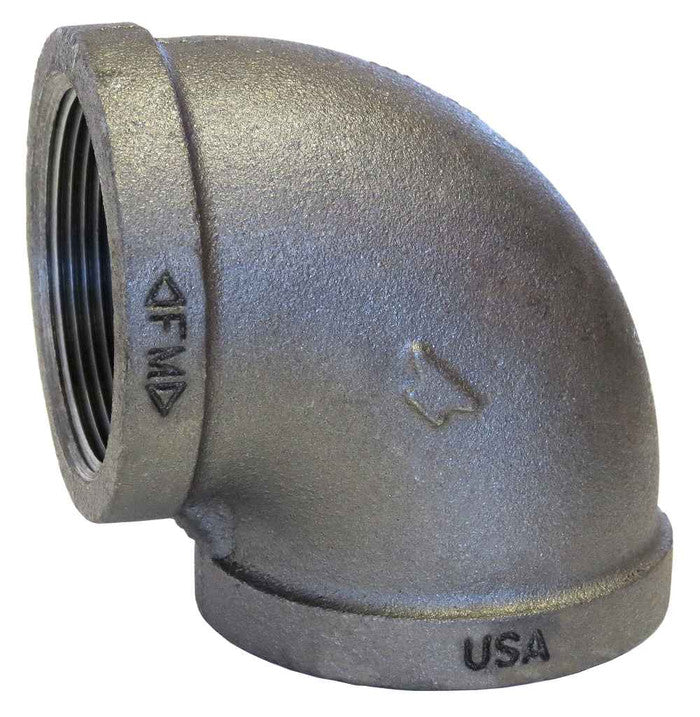

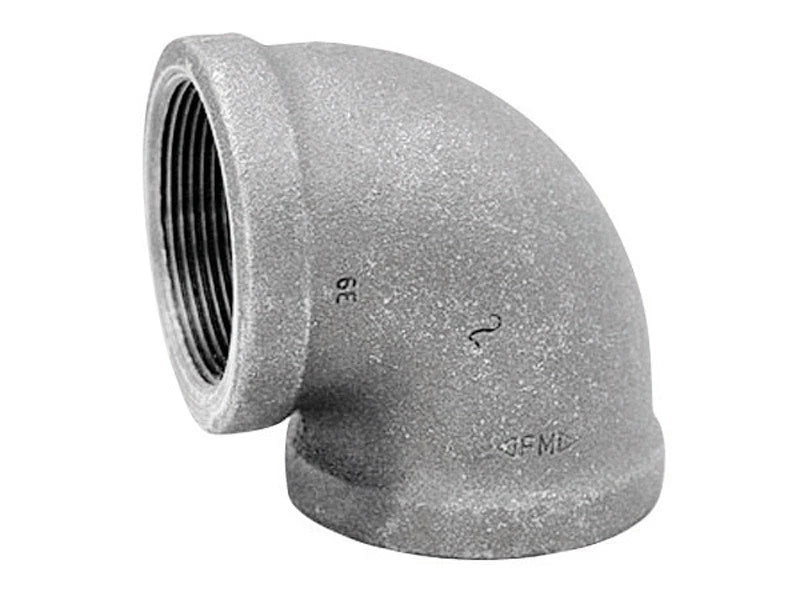

The ASC ENGINEERED SOLUTIONS 0310001003 is an Anvil Pipe Elbow, Standard, Series: FIG 1101, fitting/connector type: 90 deg Elbow, 3/4 in Nominal, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic. Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

The Anvil Pipe Elbow is manufactured and tested to meet strict quality standards. All class 150 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310001003
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Iron
• Nominal Size: 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Size 1: 0.75
• Size 2: 0.75
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Finish: Black
• Product Material: Malleable Iron
• Additional Information: ASTM A197 Material Standard, Domestic
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Type 1: Threaded
• Connection Type 2: Threaded
• Connection Type: Threaded|Threaded
• Fitting Type: 90 deg Elbow
• Material Construction: Malleable Iron
• Model Number: 0310001003
• Brand: ASC ENGINEERED SOLUTIONS
