Asc Engineered Solutions 0300152600 1x3/4 Blk Ci Ecc Reducer

Product Description

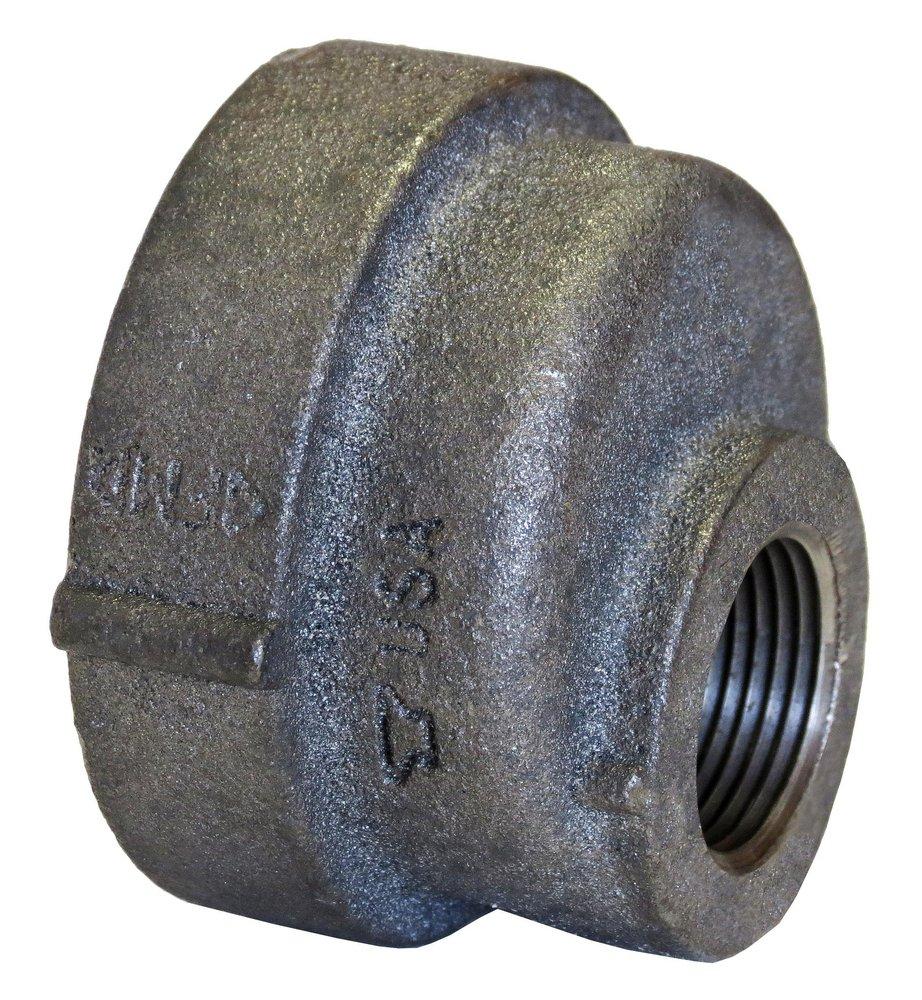

The ASC ENGINEERED SOLUTIONS 0300152600 Anvil® Eccentric Reducer, Series FIG 368, is a reducer fitting with 1 x 3/4 in nominal FNPT. It measures 1-1/2 in length, SCH 40/STD, with a 125 lb pressure class and 175 psi. Made of cast iron with a black oxide finish, it operates between -20 to 150 deg F and is domestic.

• Manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
• Compliant with ASME B16.4/B1.20.1 and ASTM A126 standards.
• cULus Listed and FM Approved

Product Highlights

The ASC Engineered Solutions Eccentric Reducer is a durable cast iron fitting suitable for reducing pipe sizes in various plumbing and industrial applications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0300152600
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Reducer
• Length: 1-1/2 in
• Material: Cast Iron
• Nominal Size: 1 x 3/4 in
• Pressure Class: 125 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 368
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• ASME: ASME B16.4
• Coating: Black
• End Connection 1: Threaded
• End Connection 2: Threaded
• End Connections: Threaded
• Fitting Size 1: 1
• Fitting Size 2: 3/4
• Fitting Sizes: 1 in x 3/4 in
• Fitting Type: Eccentric Reducer, Reducer
• Origin: Domestic
• UPC: 690291016219
