Asc 8700126306 1-1/4 in 45 Deg Black Iron Elbow

Product Description

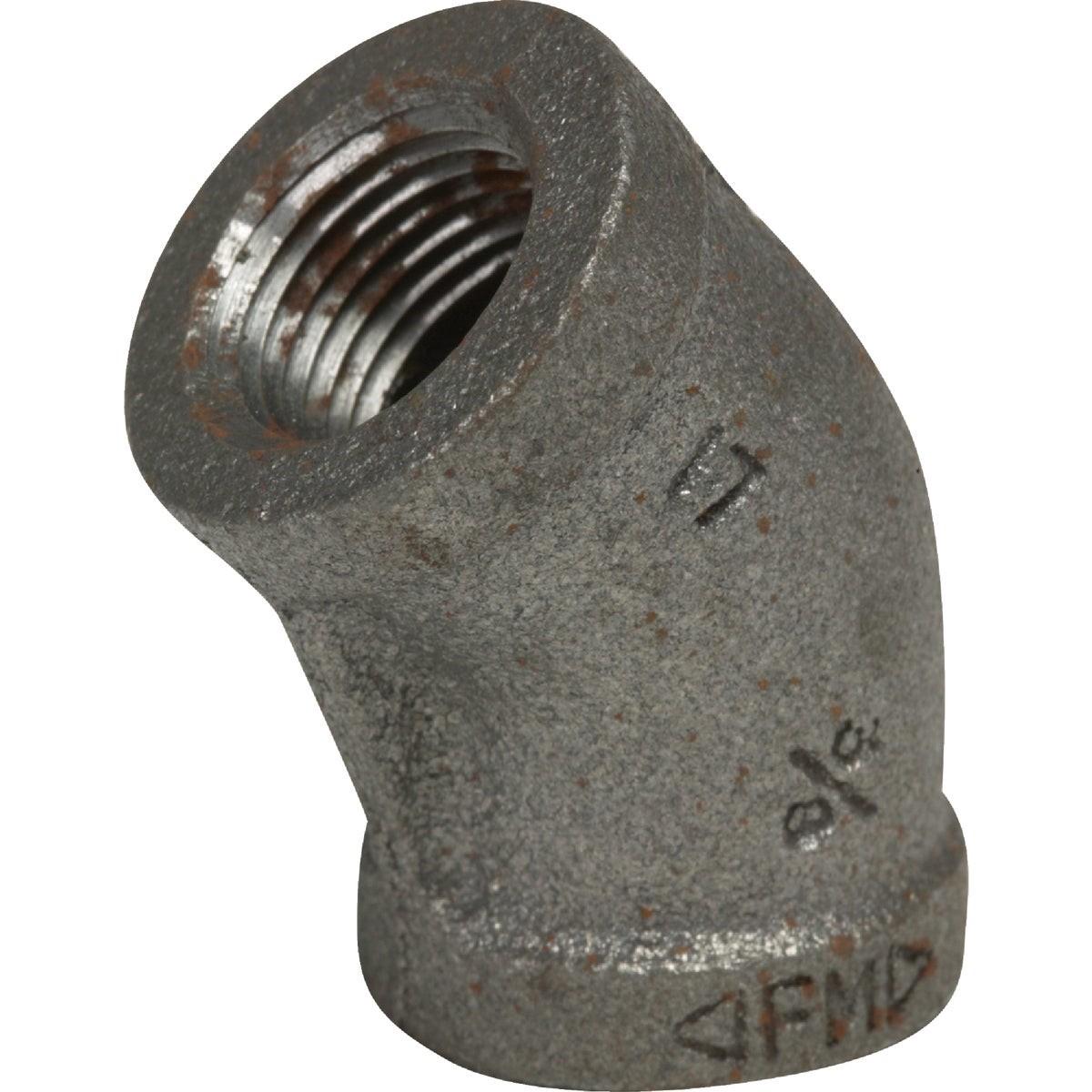

The ASC ENGINEERED SOLUTIONS 8700126306 is a 1-1/4 inch, 45-degree malleable black iron elbow, also referred to as a 1/8 bend. It is a threaded pipe fitting used to change flow direction in low-pressure piping systems. The flat banded body is cast from malleable iron meeting ASTM A-197 chemical and physical property requirements. Pipe threads conform to ANSI B-2.1, and overall dimensions meet ANSI B-16.3. This fitting is suited for plumbing, gas distribution, and mechanical piping applications and is typically installed by licensed plumbers and pipefitters.

This elbow is used in residential and commercial piping systems where a 45-degree directional change is required on a 1-1/4 inch nominal pipe run. Common applications include black iron gas lines, steam and water distribution piping, and general industrial pipe assemblies. The malleable iron construction and standard threaded ends make it straightforward to incorporate into new installations or retrofit repairs using standard pipe wrenches and thread sealant.

Key Features

• 45-degree elbow provides a gradual 1/8 bend directional change in the pipe run
• 1-1/4 inch nominal pipe size with ANSI B-2.1 compliant threaded ends
• Malleable black iron body meets ASTM A-197 chemical and physical property standards
• Flat banded design per ANSI B-16.3 dimensional standard
• Meets Federal Specification WW-P-521F for standard malleable iron fittings

Compatibility

Designed as a standard threaded malleable iron fitting compatible with 1-1/4 inch nominal black iron or steel pipe in conformance with ANSI B-16.3 and ANSI B-2.1 thread specifications.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or pipe thread compound rated for the intended service medium before making up threaded connections. Installations on gas piping must comply with applicable local codes and IFGC requirements.

Technical Specifications

• Material: Malleable Black Iron
• Pipe Size: 1-1/4 inches
• Angle: 45 degrees (1/8 Bend)
• Body Style: Flat Banded
• Weight: 0.86 pounds
• Dimension Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700126306
