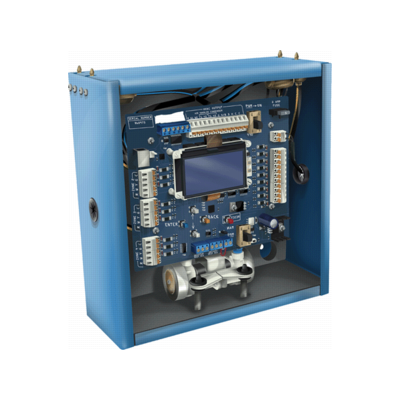

Arzel Zoning Technology PAN-HPP04 HeatPumPro 4 Zone Panel 24V (4-Zone)

Product Description

Arzel Zoning Technology PAN-HPP04 is a HeatPumPro 4-zone pneumatic zoning panel designed for use with standard 24V HVAC systems. The panel provides menu-driven setup via a software-based wizard and an LCD display, supports proactive staging with outdoor reset and dual fuel control, and includes sensors for outdoor and leaving air temperature. It features lever-style terminals, replaceable fuse protection, and a manual pump switch for damper testing.

• Pneumatically operated 4-zone control compatible with standard 24V systems including heat pumps, geothermal, furnaces, and air conditioners
• Menu-driven setup wizard and LCD display with proactive staging, outdoor reset, dual fuel control, independent blower and compressor staging, and modulating bypass port
• Includes outdoor and leaving air temperature sensors, lever-style terminals, replaceable fuse protection, and manual pump switch to open all dampers

Product Highlights

Pneumatic 4-zone HeatPumPro panel for 24V HVAC systems with LCD setup, outdoor/leaving air sensors.

Product Information

Standard Information

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: PAN-HPP04
• Country of Origin: USA

Technical Specifications

• Manufacturer: Arzel Zoning Technology
• Brand: Arzel Zoning Technology
• MPN: PAN-HPP04
• Supplier Part #: PAN-HPP04
• Product Family: HeatPumPro
• Product Type: Zone Panel, 4-Zone HeatPumPro
• Number of Zones: 4
• System Type: Pneumatically operated system
• Compatibility: Works with any standard 24V system including split geothermal units, heat pumps, conventional furnaces and air conditioners
• Input Voltage: 24V
• Setup: Menu-driven setup wizard; software-based programming
• Display: LCD display
• Controls and Features: Proactive staging with outdoor reset; dual fuel control; independent blower and compressor staging; modulating bypass port; zone weight percentage; replaceable fuse protection
• Terminals: Easy-to-use lever style terminals
• Sensors: Outdoor and leaving air temperature sensor
• Manual Pump Switch: Manual pump switch opens all dampers for testing
• Made In: USA
• Series-Brand: HeatPumPro
