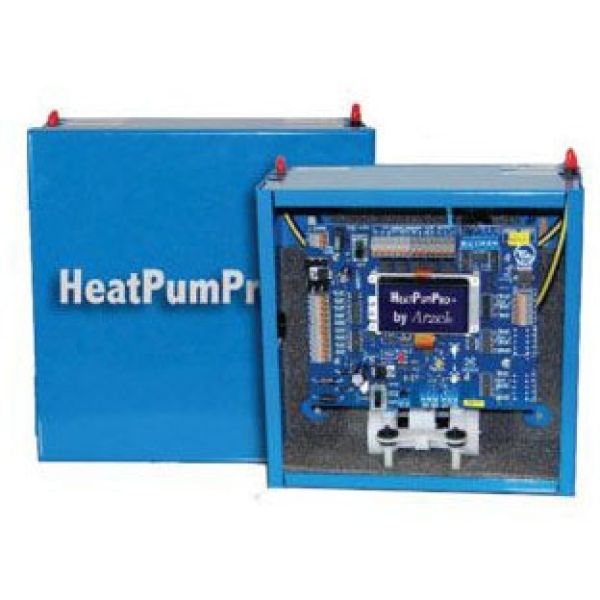

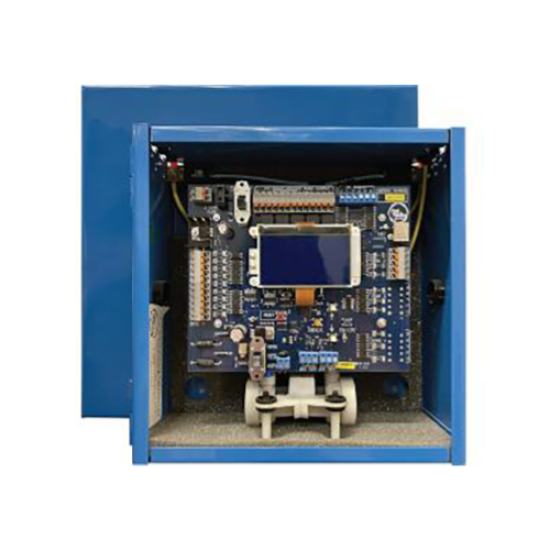

Arzel Zoning Technology PAN-HPP02 HeatPumPro 2-Zone Panel (2 Zone)

Product Description

The Arzel Zoning Technology PAN-HPP02 HeatPumPro is a 2-zone pneumatically operated zoning panel designed for standard 24 V HVAC systems. It provides software-based programming with a menu-driven setup wizard and an LCD for real-time reporting. The panel supports independent blower and compressor staging, outdoor reset and dual fuel control, and accepts outdoor and leaving air temperature sensors for proactive staging and system optimization.

• Pneumatically operated 2-zone panel with software-based programming and LCD display
• Compatible with standard 24 V HVAC systems and standard 4-wire thermostats; supports OAT and LAT sensors
• Independent blower and compressor staging, modulating bypass port, replaceable fuse protection, and manual pump switch for testing

Product Highlights

2-zone pneumatic zoning control with software programming, LCD reporting, independent staging, and support for outdoor and leaving air sensors

Product Information

Standard Information

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: PAN-HPP02
• Country of Origin: United States

Technical Specifications

• Brand: Arzel Zoning Technology
• Manufacturer Part Number: PAN-HPP02
• Alternate Part Number: 563953
• Model: HeatPumPro (HPP)
• Product Type: Zone panel
• Number of Zones: 2
• Operation: Pneumatically operated
• Compatibility: Standard 24 V HVAC systems (split, geothermal, heat pump, conventional furnace, air conditioner)
• Thermostat Compatibility: Standard 4-wire thermostats
• Display Type: LCD
• Control: Software-based programming; menu-driven setup wizard
• Staging: Independent blower and compressor staging; proactive staging with outdoor reset; dual fuel control
• Bypass: Modulating bypass port
• Sensors Supported: Outdoor air temperature (OAT) and leaving air temperature (LAT) sensors
• Protection: Replaceable fuse protection
• Terminals: Lever-style terminals
• Manual Test: Manual pump switch opens all dampers for testing
• Application: Residential and light commercial; single- or multi-stage equipment; variable speed; furnace; air conditioner; heat pump; dual fuel
• Origin: Made in the USA
