Arzel Zoning Technology PAN-AB003 AirBoss Zone Panel 3-Zone (PAN-AB003)

Product Description

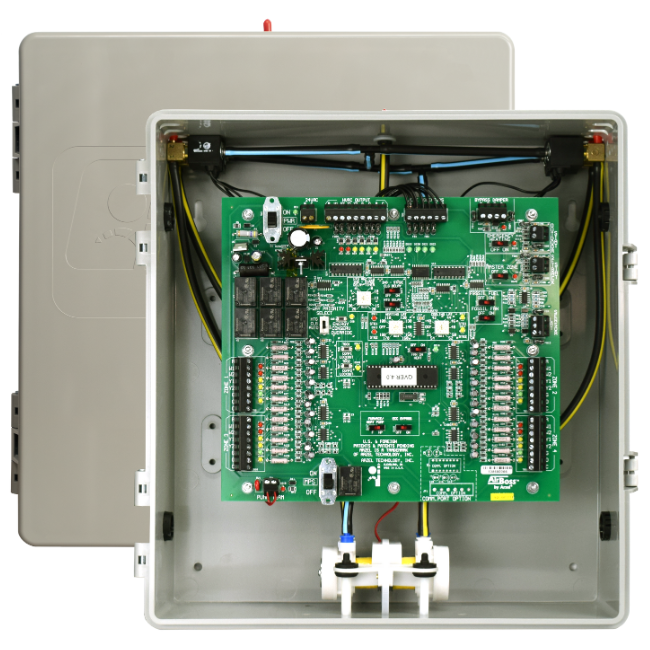

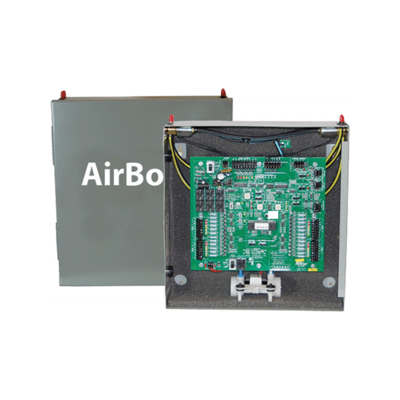

Arzel Zoning Technology PAN-AB003 is a pneumatically operated AirBoss zone control panel designed for three-zone HVAC zoning in larger residences or light commercial applications. The panel interfaces with standard 24V systems and supports split geothermal units, heat pumps, dual fuel systems, furnaces, and air conditioners. It includes on-board second stage delay timers, a leaving air temperature sensor, comprehensive LED status display, master zone setback control, and the ability to add unlimited slave zones.

• Pneumatically operated 3-zone control panel compatible with standard 24V HVAC systems including heat pumps, air conditioners, dual fuel, and furnaces
• Includes leaving air temperature (LAT) sensor, comprehensive LED status display, and on-board second stage delay timers
• Supports master zone control for unoccupied setback from zone 1 programmable thermostat and expandable with unlimited slave zones

Product Highlights

Pneumatic 3-zone AirBoss control panel, 24V compatibility, LAT sensor, LED status display, second stage delay, expandable with unlimited slave zones.

Product Information

Standard Information

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: PAN-AB003
• Country of Origin: United States

Technical Specifications

• Brand: Arzel Zoning Technology
• MPN: PAN-AB003
• Alternate Part Number: PANAB003
• Product Type: Zone panel
• Series: AirBoss
• Number of Zones: 3
• Operation: Pneumatic
• Input Voltage: 24V control
• Compatible Systems: Split geothermal units, heat pumps, air conditioners, dual fuel systems, furnaces
• Applications: Larger residences or light commercial
• Master Zone Control: Allows unoccupied system setback from zone 1 programmable thermostat
• Second Stage Delay: On-board second stage delay timers
• Sensors: Leaving air temperature (LAT) sensor
• Expandability: Supports unlimited slave zones
• Display: Comprehensive LED status display
• Country of Origin: United States
