Arzel Zoning Technology MOD-BYP10 Modulating Bypass Kit (10 in)

Product Description

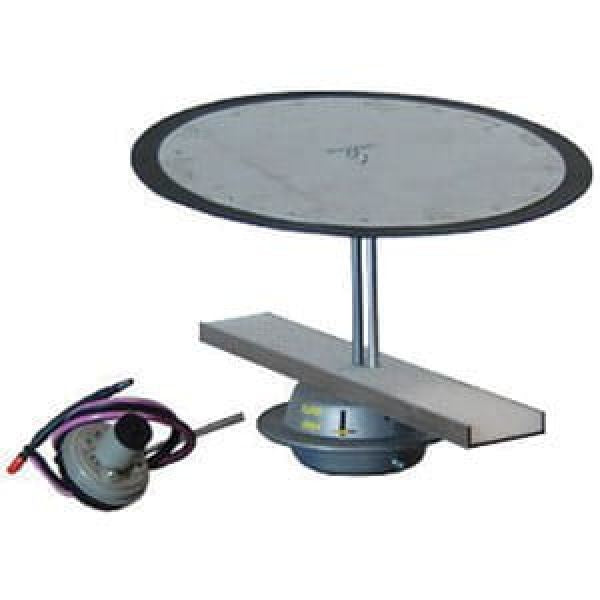

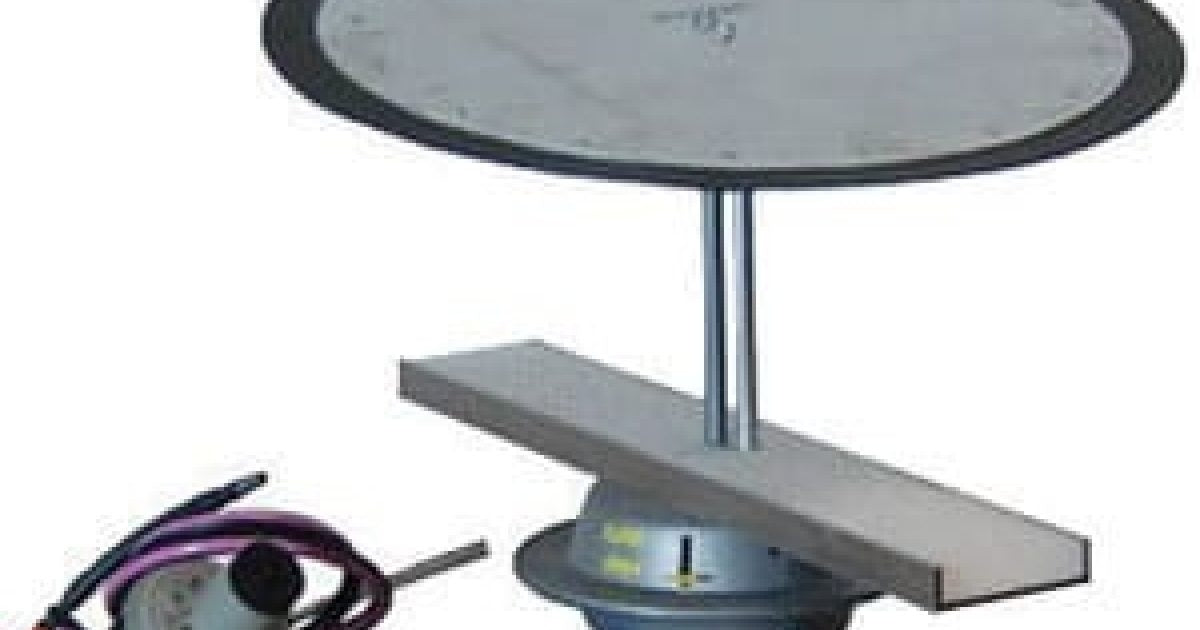

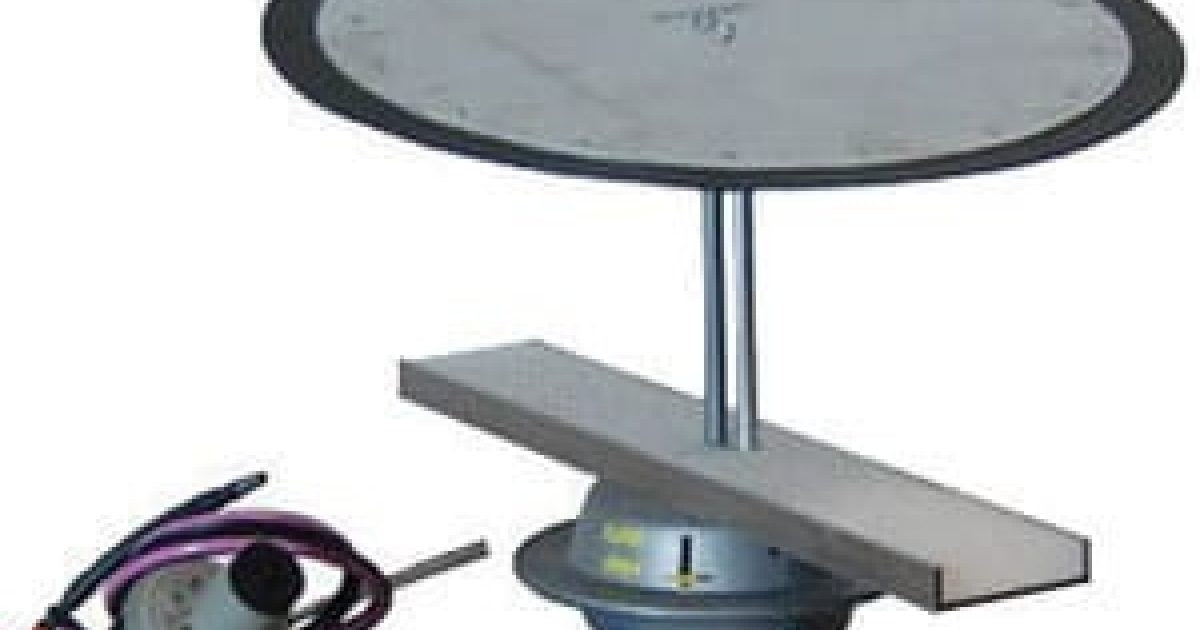

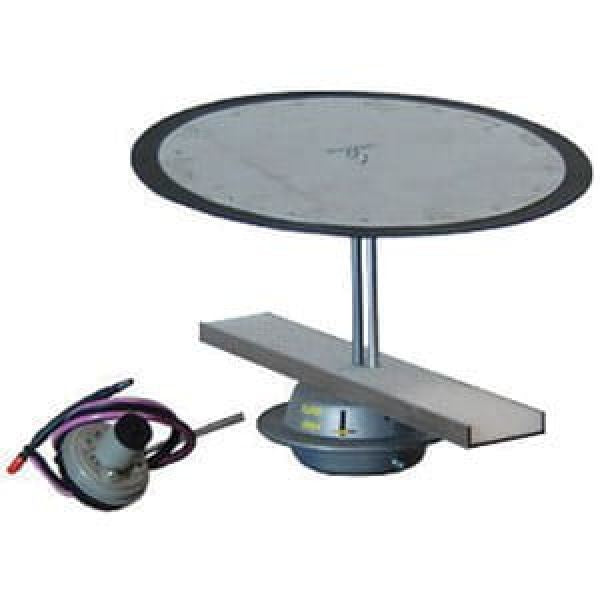

The Arzel Zoning Technology MOD-BYP10 is a 10 in modulating bypass kit for HVAC zoning systems that monitors trunk static pressure and adjusts bypass airflow to maintain a prescribed setpoint. The MOD-BYP10 is designed for use with variable speed motors and includes a static pressure transmitter and pitot tube; a barometric bypass damper is available for non-variable speed blowers. It is compatible with Arzel panel systems such as AirBoss, HeatPumPro, and GTPro.

• Modulating bypass damper that continuously monitors trunk static pressure and adjusts bypass airflow
• Designed to work with variable speed motors; barometric bypass option for non-variable speed blowers
• Includes static pressure transmitter and pitot tube; compatible with AirBoss, HeatPumPro, and GTPro panels

Product Highlights

10 in modulating bypass kit for zoning systems; monitors and regulates trunk static pressure; compatible with variable speed motors and Arzel panel systems.

Product Information

Standard Information

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: MOD-BYP10

Technical Specifications

• Manufacturer: Arzel Zoning Technology
• Brand: Arzel
• MPN: MOD-BYP10
• Series: ModuPass
• Product Type: Modulating Bypass Kit
• Size: 10 in (round)
• Compatible With: AirBoss, HeatPumPro, GTPro panels and variable speed motors
• Includes: Static pressure transmitter; pitot tube
• Application: HVAC zoning systems, control and relieve excess static pressure
• Used On: Zoning system
• Alternate Part Numbers: APR Part #: 1380003; Part #: 563960; MODBYP10; Mid-City ID: 290152
• UNSPSC: 40101500
