Arzel Zoning PAN-HPP04 Four Zone Control Panel

Product Description

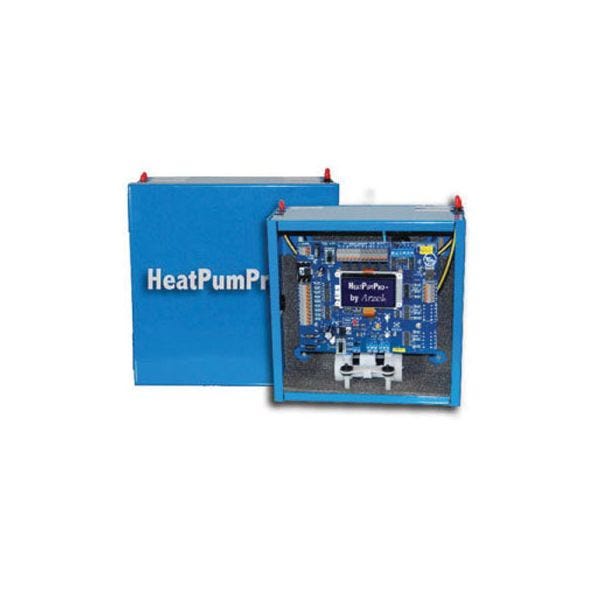

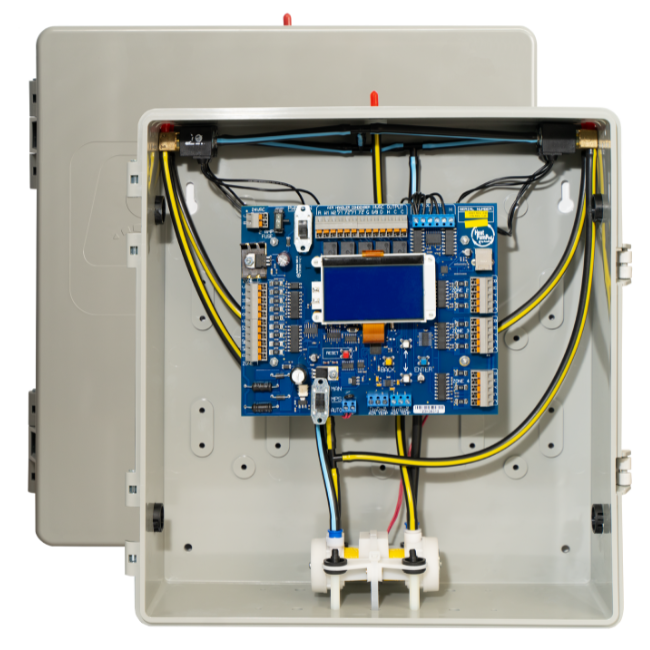

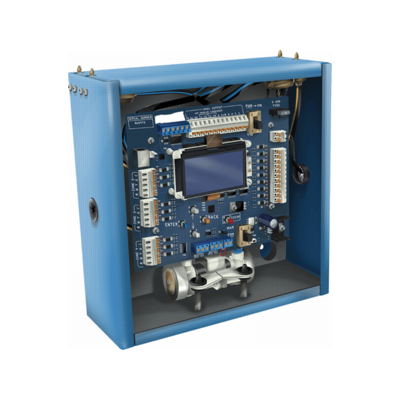

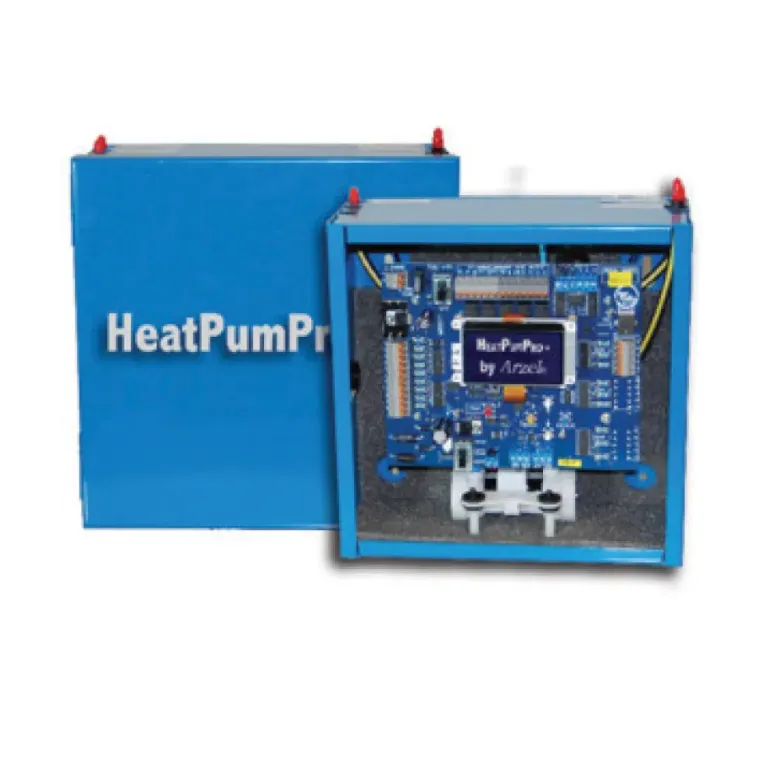

The Arzel Zoning HeatPumPro PAN-HPP04 is a control panel suitable for both residential and light commercial applications with the capacity to manage up to four zones. It works seamlessly with single and multi-stage equipment, including variable speed systems, furnaces, air conditioners, heat pumps, and dual fuel systems. This model is designed to be compatible with standard twenty-four volt systems and is ideal for new constructions as well as retrofitting existing setups. The panel is user-friendly and features a built-in LCD screen for easy monitoring.

• Independent blower and compressor staging capabilities.
• Includes Outdoor Air Temperature (OAT) and Leaving Air Temperature (LAT) sensors.
• Equipped with lever style terminals for simple wiring and replaceable fuse protection.

Product Highlights

This control panel enhances energy management by allowing precise control over HVAC systems in multiple zones. Its easy installation process makes it a favored choice among professionals in the field.

Product Information

Standard Information

• Manufacturer: Arzel
• Series: HeatPumPro

Technical Specifications

• Number of Zones: 4
• Display Type: LCD
• Compatibility: Universal compatibility with standard 24V systems
• Operation: Pneumatically operated
• Dimensions: 5.00 inches x 12.00 inches x 12.00 inches
• Weight: 14.00 lbs
