ARZEL ZONING MOD-BYP12 ModuPASS Bypass Kit 12-inch

Product Description

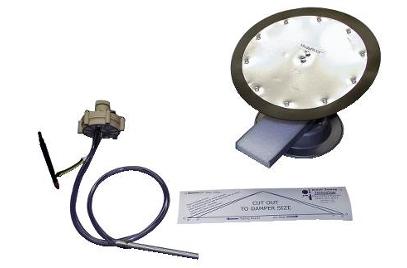

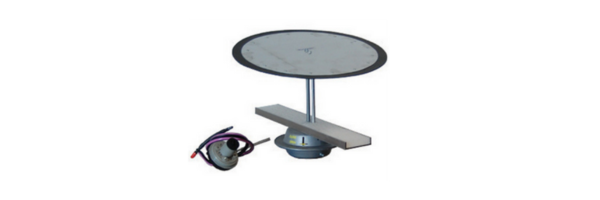

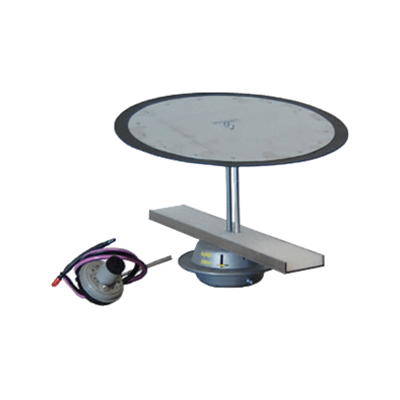

The Arzel Zoning MOD-BYP12 ModuPASS bypass kit is designed for use with variable speed motors. This system monitors static pressure in the trunk and adjusts accordingly to allow the necessary amount of bypass air. The kit features a diameter of twelve inches and includes a spring-open damper along with a pressure transmitter. It accurately measures static pressure in the supply duct, ensuring optimal airflow management.

• Modulating bypass to reduce air noise
• Compatible with variable speed motors
• Continuous monitoring of static pressure

Product Highlights

The ModuPASS is essential for efficient bypass functionality when using variable-speed blowers and is suitable for universal application.

Product Information

Standard Information

• Part Number: MOD-BYP12
• Description: 12-inch diameter ModuPASS kit

Technical Specifications

• Shipping Weight: 3 pounds
• Shipping Width: 16.30 inches
• Shipping Length: 16.54 inches
• Shipping Height: 10.47 inches
• Harmonize Code: 7606.12.30
• Country of Origin: United States
