Arzel MOD-BYP08 Modulating Bypass Kit (8 in)

Product Description

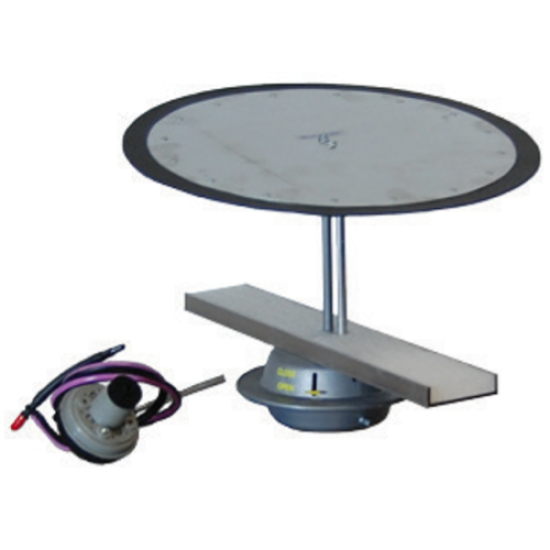

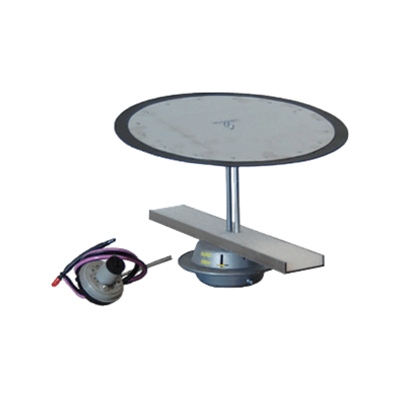

Arzel MOD-BYP08 is a modulating bypass kit that monitors trunk static pressure and adjusts a bypass damper to allow the prescribed amount of bypass air. The 8 in ModuPass kit is designed for variable-speed motors and is compatible with AirBoss, HeatPumPro, and GTPro panels; a barometric bypass damper option is provided for non-variable speed blowers. The pneumatic, spring-open damper uses a pressure transmitter to measure supply duct static pressure and set bypass position.

• Designed for variable-speed motors; compatible with AirBoss, HeatPumPro, and GTPro panels
• Pneumatically operated with a spring-open damper and pressure transmitter to measure static pressure
• Includes barometric bypass damper option for non-variable speed blowers to reduce objectionable air noise

Product Highlights

8 in ModuPass modulating bypass damper that monitors trunk static pressure and automatically adjusts bypass airflow

Product Information

Standard Information

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: MOD-BYP08
• Country of Origin: United States

Technical Specifications

• Brand: Arzel Zoning Technology
• Manufacturer: Arzel Zoning Technology
• Manufacturer Part Number: MOD-BYP08
• Series: ModuPass
• Size: 8 in
• Function: Modulating bypass damper monitors trunk static pressure and adjusts bypass air
• Operation: Pneumatically operated
• Damper Type: Spring-open damper
• Components: Pressure transmitter
• Compatible With: AirBoss, HeatPumPro, GTPro panels; variable-speed motors
• Barometric Bypass Option: Provided for non-variable speed blowers
• APR Part Number: 1380002
• Supplier Part Number: 564906
• Country of Origin: Made in the USA
