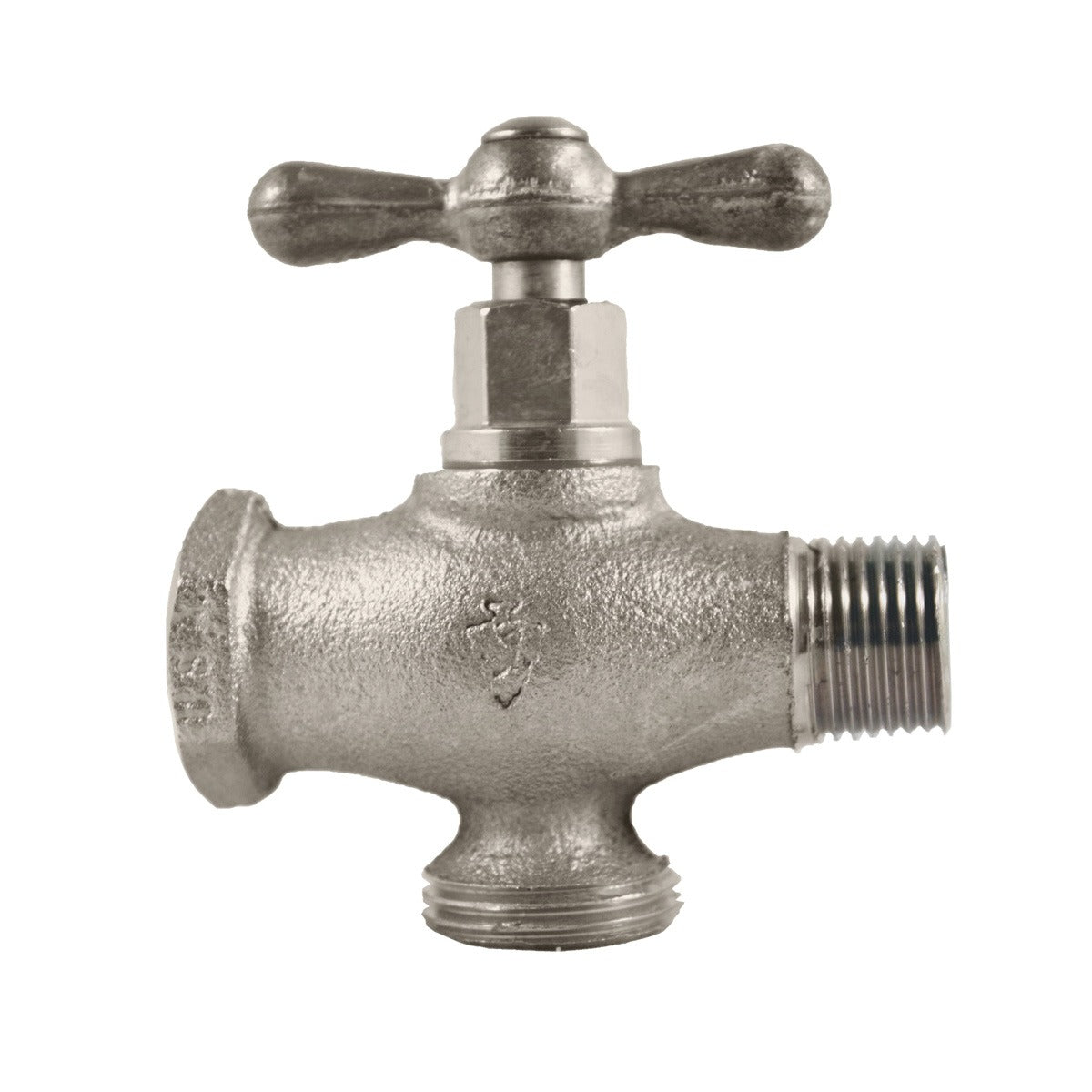

Arrowhead Brass Plumbing 250LF Washing Machine Valve

Product Description

The ARROWHEAD BRASS PLUMBING 250LF is a washing machine valve designed for residential laundry supply lines. It features a 3/4-inch male hose thread bottom bypass, a 1/2-inch nominal pipe size, and MNPT x FNPT end connections. The valve is rated for 125 psi working pressure and delivers a flow rate of 8 to 9 gallons per minute. The body is constructed from bronze alloy, which resists corrosion in potable water applications. This is a lead-free (LF) compliant fitting, meeting requirements for use in drinking water systems. Licensed plumbers typically install this valve during laundry room rough-ins or appliance replacements.

This valve is intended for residential washing machine supply applications where a shutoff with a hose thread bypass is required. The bottom bypass port accepts a standard 3/4-inch male hose thread connection, making it compatible with typical washing machine supply hoses. The MNPT x FNPT configuration allows it to thread directly into existing 1/2-inch pipe runs without additional adapters in most standard installations. It is suited for both new construction and retrofit projects in residential settings.

Key Features

• Lead-free (LF) bronze alloy body for potable water compliance
• 125 psi rated working pressure for standard residential supply lines
• 8 to 9 gpm flow rate supports typical washing machine demand
• 3/4-inch male hose thread bottom bypass for direct hose connection
• 1/2-inch nominal MNPT x FNPT ends thread into standard pipe runs
• Domestic manufacture

Compatibility

Designed as an OEM-style replacement or new-installation washing machine supply valve for residential 1/2-inch plumbing systems with MNPT x FNPT connections and 3/4-inch male hose thread bypass outlets.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the main water supply and relieve line pressure before removing or installing any valve. Apply thread sealant tape to all male threaded connections and verify no cross-threading before final tightening. Inspect for leaks at operating pressure after restoring water service.

Technical Specifications

• Nominal Size: 1/2 inch
• End Style: MNPT x FNPT
• Bypass Thread: 3/4 inch Male Hose Thread
• Working Pressure: 125 psi
• Flow Rate: 8 to 9 gpm
• Body Material: Bronze Alloy
• Lead-Free Compliant: Yes
• Origin: Domestic

Standard Information

• Brand: ARROWHEAD BRASS PLUMBING
• Manufacturer Part Number: 250LF
