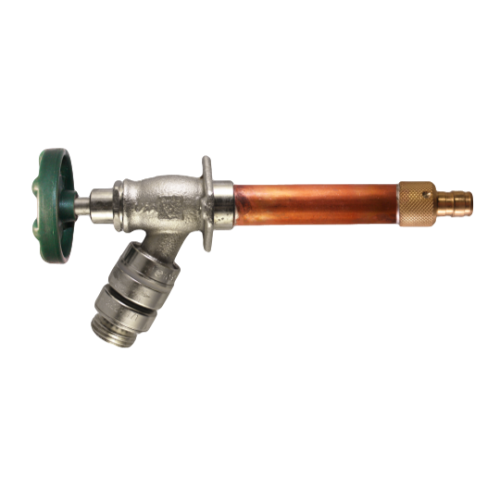

Arrowhead 482-14LF 14 inches Self-Draining Frost Proof Hydrant 1/2 inches Wirsbo PEX

Product Description

The ARROWHEAD BRASS 482-14LF is a 14" self-draining, frost-proof hydrant with a 1/2" Wirsbo PEX connection. It features a fine thread self-draining vacuum breaker that allows the hydrant to drain when shut off to prevent freezing. It is made from heavy-duty lead-free bronze alloy and is certified to NSF/ANSI 372 by IAPMO.

• Self-Draining
• Frost Proof
• Features Arrowhead's exclusive O-ring bonnet & stem design (no packing nut to tighten).

Product Highlights

The hydrant has a 1/2" Wirsbo PEX inlet connection, a 3/4" garden hose thread outlet connection, a maximum pressure of 125 PSI, and a maximum temperature of 180° F. It also comes with a 3-year limited warranty.

Product Information

Standard Information

• Brand: ARROWHEAD BRASS
• Manufacturer Part Number: 482-14LF

Technical Specifications

• Made from: Heavy duty lead free bronze alloy; Lead Free certified to NSF/ANSI 372 by IAPMO.
• Factory installed: Fine thread Self-Draining Vacuum Breaker: Allows hydrant to drain when shut off to prevent freezing.
• Inlet Connection: 1/2" Wirsbo PEX (cold expansion PEX).
• Outlet Connection: 3/4" Garden Hose Thread.
• Includes: Arrowhead's exclusive O-ring bonnet & stem design (no packing nut to tighten).
• Warranty: 3-Year limited warranty.
• Max pressure: 125 PSI.
• Max temperature: 180° F.
