Arrow D60 26D Grade 1 Exit Deadbolt Conventional Cylinder (2-3/8 inches and 2-3/4 inches Backset)

Brand: ARROW
SKU: D60 26D
Availability: In Stock

Ships same day if ordered by 12 pm
$90.38
$90.38
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

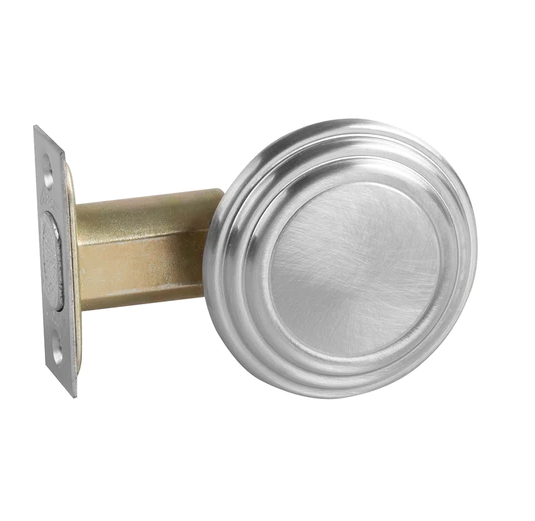

The Arrow D60 26D is a Grade 1 exit deadbolt with a conventional cylinder designed for commercial, institutional, and industrial doors. It features a two-piece housing with a free-spinning outer ring to resist wrenching, a 1 in. solid steel deadbolt with hardened pin, and selectable 2-3/8 in. or 2-3/4 in. backsets for doors 1-3/8 in. to 1-3/4 in. thick. Supplied with strikes and a 6-pin brass cylinder.

  • 1 in. solid steel deadbolt throw with hardened, free-spinning steel pin and insert
  • Two-piece housing with free-spinning outer ring to prevent wrenching; all functions reversible
  • Includes solid brass 6-pin Arrow A keyway cylinder with two nickel silver keys; supplied with #346 strike and BX91D reinforcement

Product Highlights

Grade 1 auxiliary exit deadbolt, 1 in. bolt, reversible handing, ANSI A156.5 and UL/CUL listed

Product Information

Standard Information

  • Brand: ARROW
  • Manufacturer Part Number: D60 26D
  • Country of Origin: United States
Technical Specifications
Brand
Arrow
MPN
D60 26D
Product Name
Grade 1 Exit Deadbolt

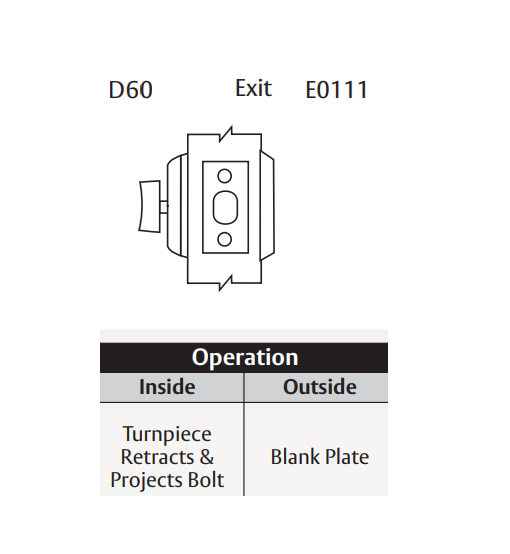

Function
Exit deadbolt, conventional cylinder
Grade
Grade 1
Finish
Satin
Country of Origin
United States
Housing
Two-piece housing with free-spinning outer ring to prevent wrenching
Deadbolt Throw
1 in. (25.40 mm) solid steel deadbolt with hardened, free-spinning steel pin & insert
Backset Options
2-3/8 in. (60.32 mm) and 2-3/4 in. (69.85 mm)
Deadbolt Front Dimensions
2-1/4 in. x 1 in. (for 2-3/8 in. backset); 2-1/4 in. x 1-1/8 in. (for 2-3/4 in. backset)
Door Thickness
1-3/8 in. (34.925 mm) to 1-3/4 in. (44.45 mm)
Strikes Supplied
#346 wood frame strike and BX91D strike reinforcement (345 metal frame strike optional)
Handing
All functions reversible
Cylinder (standard)
Solid brass 6-pin Arrow A keyway cylinder supplied with two nickel silver keys
Cylinder Options
Accepts 6 or 7 pin small format interchangeable cores; accepts Best or Falcon type cores (except E41)
Certifications
ANSI A156.5 Auxiliary Locks Grade 1; UL and CUL listed for use on 20-minute fire doors with a rated primary latching device
Item Weight
1.0000 lb
