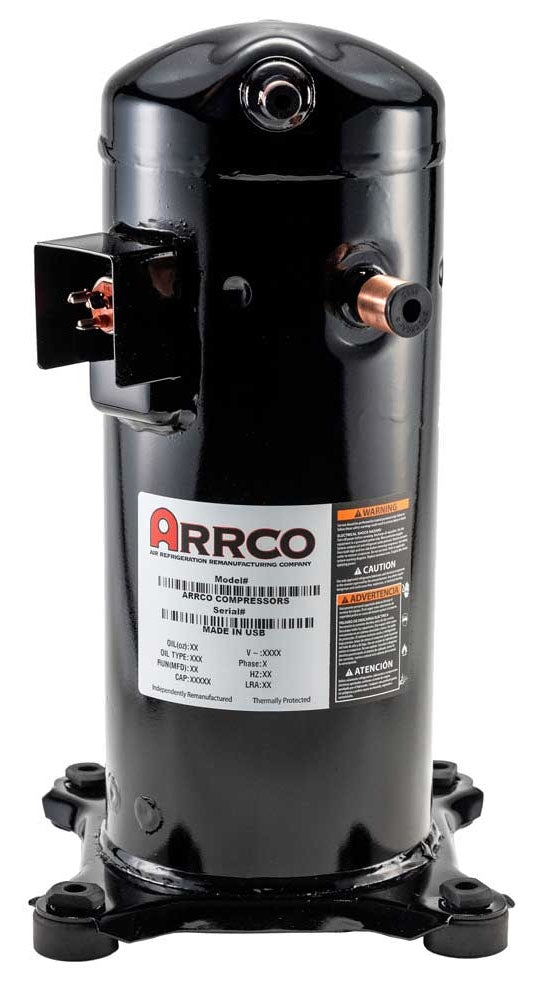

ARRCO AR48KP-HFD Scroll Compressor 48000 BTU/Hr

Product Description

The ARRCO AR48KP-HFD is a scroll compressor designed specifically for air conditioning and HVAC systems. This product operates efficiently with R-22 and R-407C refrigerants. It features a thermally protected motor suitable for use in 460 VAC 60 Hz 3-Phase power systems. The unit has a three-fourths inch suction fitting and a one-half inch discharge fitting. The compressor's nominal capacity is 48000 BTU per hour.

• Nominal capacity of 48000 BTU per hour
• Operates on 460 VAC 60 Hz 3-Phase power
• Compatible with R-22 and R-407C refrigerants

Product Highlights

This compressor is ideal for both residential and commercial HVAC systems.

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AR48KP-HFD

Technical Specifications

• Nominal Capacity: 48000 BTU/Hour
• Voltage Rating: 460 Volt AC 60 Hertz 3-Phase
• Fitting Size: 3/4 Inch (Suction), 1/2 Inch (Discharge)
• Refrigerant Type: R-22/R-407C
• Motor Type: Thermally Protected
• Application: HVAC System
• Capacity: 4 Ton
